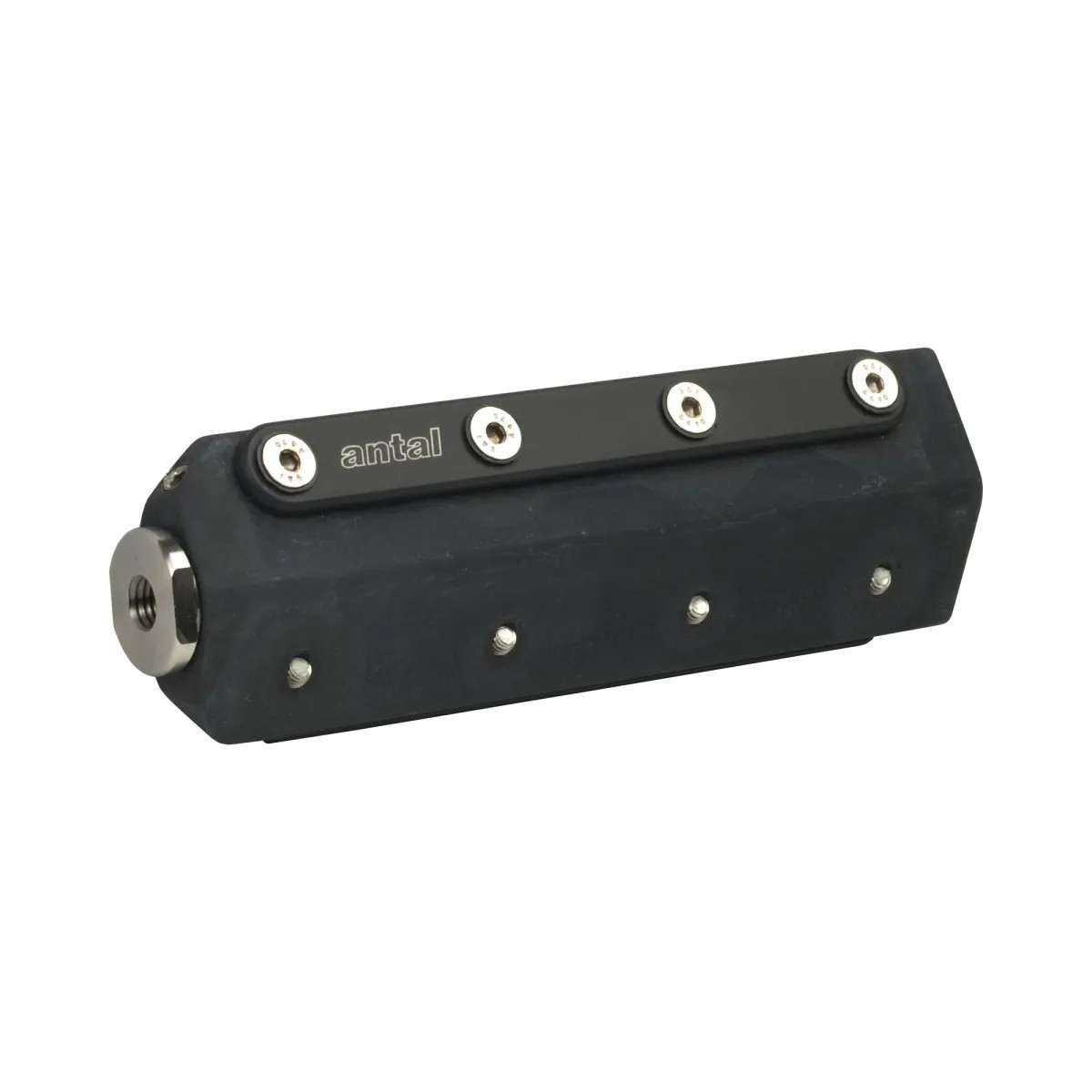

SBR BATTEN RECEPTACLE L200 AL MADE + FOR D22 ROUND BATTEN + FOR M14 TOGGLE
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
609.324/14
Product Description
For round batten.
For 14 mm threaded toggle.
The SBR is different from standard batten receptacles in that it fits inside the batten pocket, making it invisible on the outside except for the small fastening plate - thereby almost completely eliminating chafe on the mast and rigging. Moreover the batten will be not on one side, but perfectly in the middle. Each SBR includes: the main body; side plates to fix the receptacle to the sail; trimming screw for batten compression; the cap with a threaded hole to screw the receptacle in the toggle of the batten slider.
For 14 mm threaded toggle.
The SBR is different from standard batten receptacles in that it fits inside the batten pocket, making it invisible on the outside except for the small fastening plate - thereby almost completely eliminating chafe on the mast and rigging. Moreover the batten will be not on one side, but perfectly in the middle. Each SBR includes: the main body; side plates to fix the receptacle to the sail; trimming screw for batten compression; the cap with a threaded hole to screw the receptacle in the toggle of the batten slider.
TECHNICAL CHARACTERISTICS
|
Length (L):
|
Height (H):
|
|
200 mm
|
64 mm
|
|
Batten dimensions:
|
Weight:
|
|
Ø22 mm
|
0,54 kg
|
|
Material:
|
Fixing screws:
|
|
Aluminum
|
8
|
