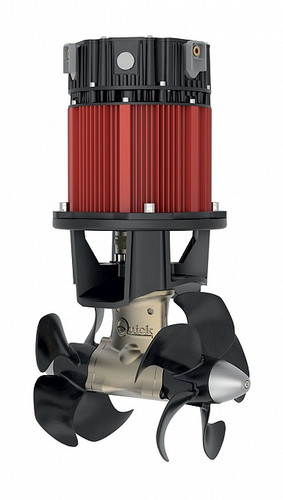

Quick BT QSY 250 Thrusters
Hover over image to zoom
Product Description
The QSY-Quick Synchronous Motors thrusters have an extended rate in standard environmental conditions, thus reaching 10 minutes continuous operation. BT QSY thrusters are compatible with the new Quick controls QNC.
- Double propeller made in sturdy composite material.
- Recommended boat length from 14-21 m (45-69 ft)
- Gearbox in bronze
- Aluminium anode independent from the gearbox and hence easily replaceable.
- Equipped with elastic coupling.
Double propeller
24 V 8/12 kW
Tunnel 9" 27/32
Boat size 42-69 ft
| MODEL | POWER SUPPLY | POWER | THRUST | TUNNEL |
|---|---|---|---|---|
| BT QSY 250-140 | DC 24 V | 8000 W | 140 Kgf | 250 Ø mm |
| BT QSY 250-200 | DC 24 V | 12000 W | 200 Kgf | 250 Ø mm |
