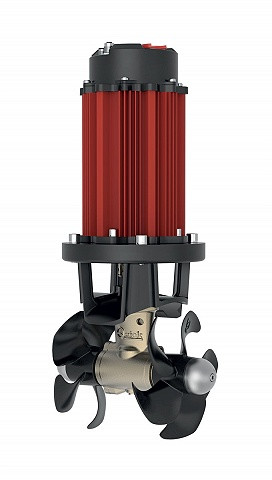

Quick BT QSY 185 Thrusters
Hover over image to zoom
Product Description
The QSY-Quick Synchronous Motors thrusters have an extended rate in standard environmental conditions, thus reaching 10 minutes continuous operation. BT QSY thrusters are compatible with the new Quick controls QNC.
- Doppia propeller made in sturdy composite material.
- Recommended boat length from 8-15 m (26-49 ft)
- Gearbox in bronze
- Aluminium anode independent from the gearbox and hence easily replaceable.
- Equipped with elastic coupling.
Double propeller
12/24 V 4/8 kW
Tunnel 7" 9/32
Boat size 29-59 ft
| MODEL | POWER SUPPLY | POWER | THRUST | TUNNEL |
|---|---|---|---|---|
| BT QSY 185-85 | DC 12, 24 V | 4000 W | 85 Kgf | 185 Ø mm |
| BT QSY 185-100 | DC 24 V | 8000 W | 100 Kgf | 185 Ø mm |
