Quick Balder BL2 R P Rope Windlasses - Quote Only
Hover over image to zoom
Product Description

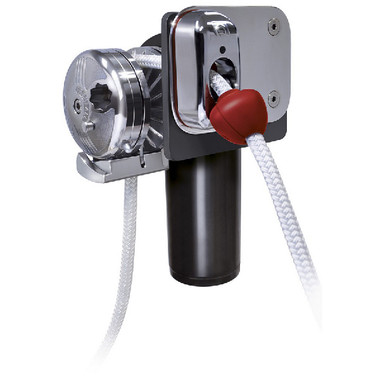

BL2 Horizontal Axel Windlass FF is the ideal rope only windlass to be installed at the stern thanks to the special mounting kit.
However, it also adapts perfectly to any requirement and allows several combinations.
Features include Rope only windlass, Maximum flexibility of installation, AISI 316 Stainless steel and chromed bronze, Automatic system of anchor-rode free-fall, Supplied with rope guide device, Watertight motor (IP67), Anodized aluminum gearbox.
| Model | BALDER FF 600 X | BALDER FF 900 X | BALDER FF 1200 X/Y | |||
| Motor Output | 600 W | 900 W | 1200 W | |||
| Motor Supply voltage | 12 V | 24 V | 12 V | 24 V | 12 V | 24 V |
| Maximum working load | 200 Kg / 441 lb | 320 Kg / 705 lb | 420 Kg/ 926 lbs | |||
| Maximum speed | 25-28 m/min | 22-25 m/min | 28-30 m/min | |||
| 82-91 ft/min | 72-82 ft/min | 91-98 ft/min | ||||
| Weight | 9,0 Kg / 19.8 lb | 14,6 Kg / 32.2 lb | 19,2 Kg / 42.3 lb | |||
| Available Models | |
| FSBLD0612000A00 | BALDER 612 WINDLASS 600W 12V ROPE |
| FSBLD0624000A00 | BALDER 624 WINDLASS 600W 24V ROPE |
| FSBLD0912000A00 | BALDER 912 WINDLASS 900W 12V ROPE |
| FSBLD0924000A00 | BALDER 924 WINDLASS 900W 24V ROPE |
| FSBLD1212000A00 | BALDER 1212 WINDLASS 1200W 12V ROPE |
| FSBLD1212Y00A00 | BALDER 1212 WINDLASS 1200W 12V Y ROPE |
| FSBLD1224000A00 | BALDER 1224 WINDLASS 1200W 24V ROPE |
| FSBLD1224Y00A00 | BL2R 1224 WINDLASS 1200W 24V Y ROPE |
