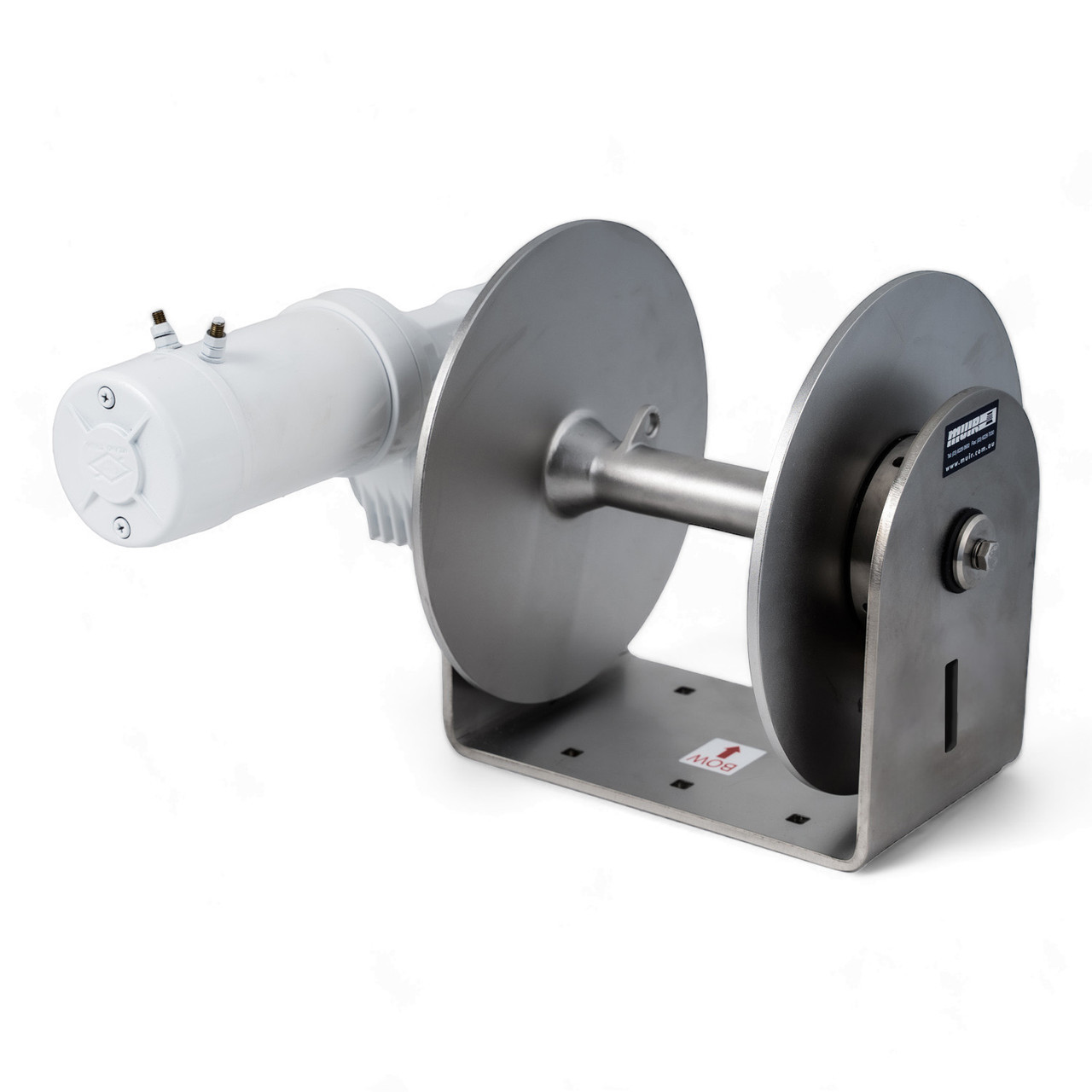

Muir DW15 Drum Windlasses - Quote Only
Hover over image to zoom
muir
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Product Description
Power up / Power Down Operation
If necessary the Freefall Drum Winch can be powered down without free-fall. This can be done by loosening the Declutcher with the Clutch Handle and allowing the Declutcher to drop to the bottom of the slot.
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Included in the package:
Circuit Breaker & Mounting Pannel
Rocker Switch
Deck mounting studs & fasteners
Reversing Solenoid kit
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 12-14m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
150A/100A (12/24V) |
| Motor (Watts) | 1700Watts |
| Amps Workload | 185A/90A (12/24V) |
| Max Load | 390Kg |
| Workload | 130Kg |
| Max Line Speed | 25m/min |
| Compatible Chain Sizes | 10 mm (3/8”), 12 mm (0.47244“) |
| Compatible Rope Sizes |
12mm (1/2″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 35Kg |
