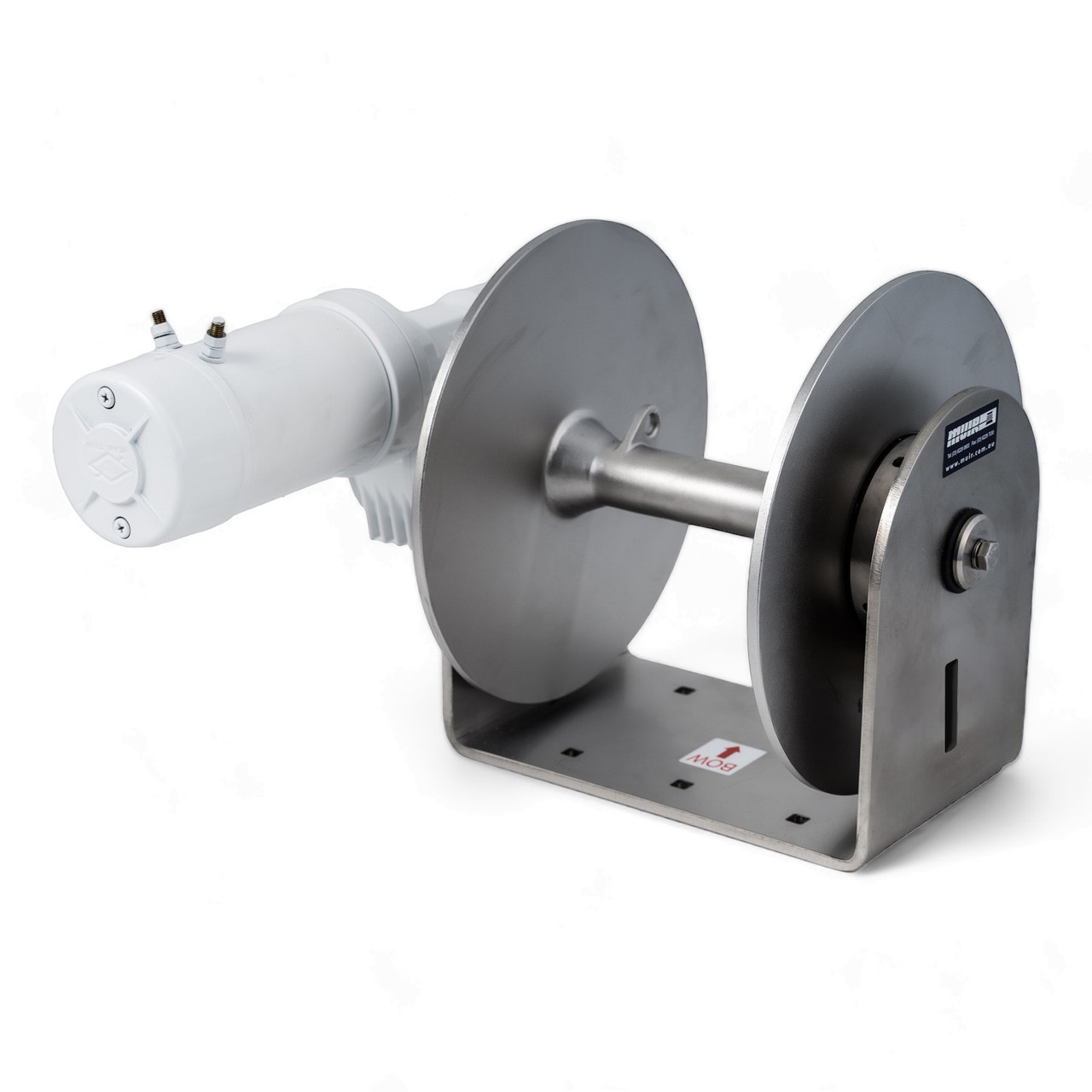

Muir DW10 Drum Windlasses - Quote Only
Hover over image to zoom
Product Description
Features
- Marine grade 316 stainless steel drum
- Heavy duty, marine grade, dual-direction motor
- Superior, heavy-duty Italian drive train
- Compact Anchoring system to suit boats with no anchor rode storage
- Simple installation
Included in the package:
Circuit Breaker & Mounting Pannel
Rocker Switch
Deck mounting studs & fasteners
Reversing Solenoid kit
Installation/Operation booklet
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 8-10m |
| Power Supply Options | DC 12V, DC 24V, DC 48V |
| Recommended Muir Circuit Breaker |
100A/80A (12/24V) |
| Motor (Watts) | 1200Watts |
| Amps Workload | 125A/60A (12/24V) |
| Max Load | 261Kg |
| Workload | 87Kg |
| Max Line Speed | 33m/min |
| Compatible Chain Sizes | 8 mm (5/16“), 10 mm (3/8”) |
| Compatible Rope Sizes |
10mm (3/8″) |
| Auto Anchor Compatible | Yes |
| Net Weight DC | 30Kg |
