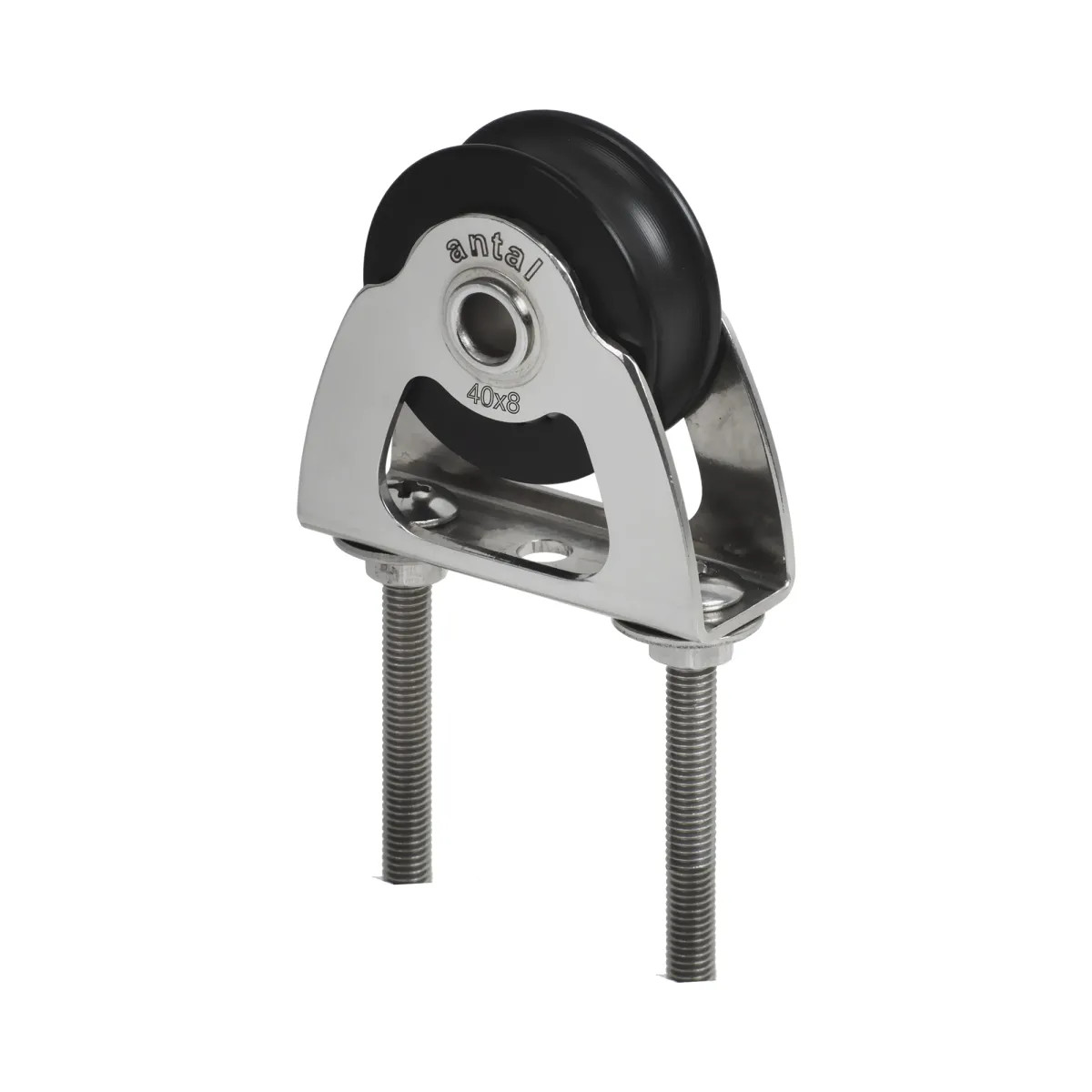

MINI S.STEEL DECK-BLOCK D040 UPRIGHT
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
00423
Product Description
Vertical fix, sheave Ø40, SWL 500 kg.
This model ca be grouped in battery, joined by a central pivot. Add the number of elements to the model code, as in the following example:
00423/2, 00423/3, 00423/n respectively for batteries from 2, 3, N° pieces.
This model ca be grouped in battery, joined by a central pivot. Add the number of elements to the model code, as in the following example:
00423/2, 00423/3, 00423/n respectively for batteries from 2, 3, N° pieces.
Technical Characteristics:
| Length (L): | Width (W): |
| 63 mm | 18 mm |
| Height (H): | Ø sheave (D): |
| 55 mm | 40 mm |
| Side bearing: | Weight: |
| Delrin balls | 77 gr |
| Ø max line: | SWL: |
| 8 mm | 500 kg |
| Material: | Sheave material: |
| S.Steel | Resin |
| Fixing screws: | |
| 2 x Ø6 mm |
