MINI S.STEEL DECK-BLOCK D034 UPRIGHT
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
00323
)
Product Description

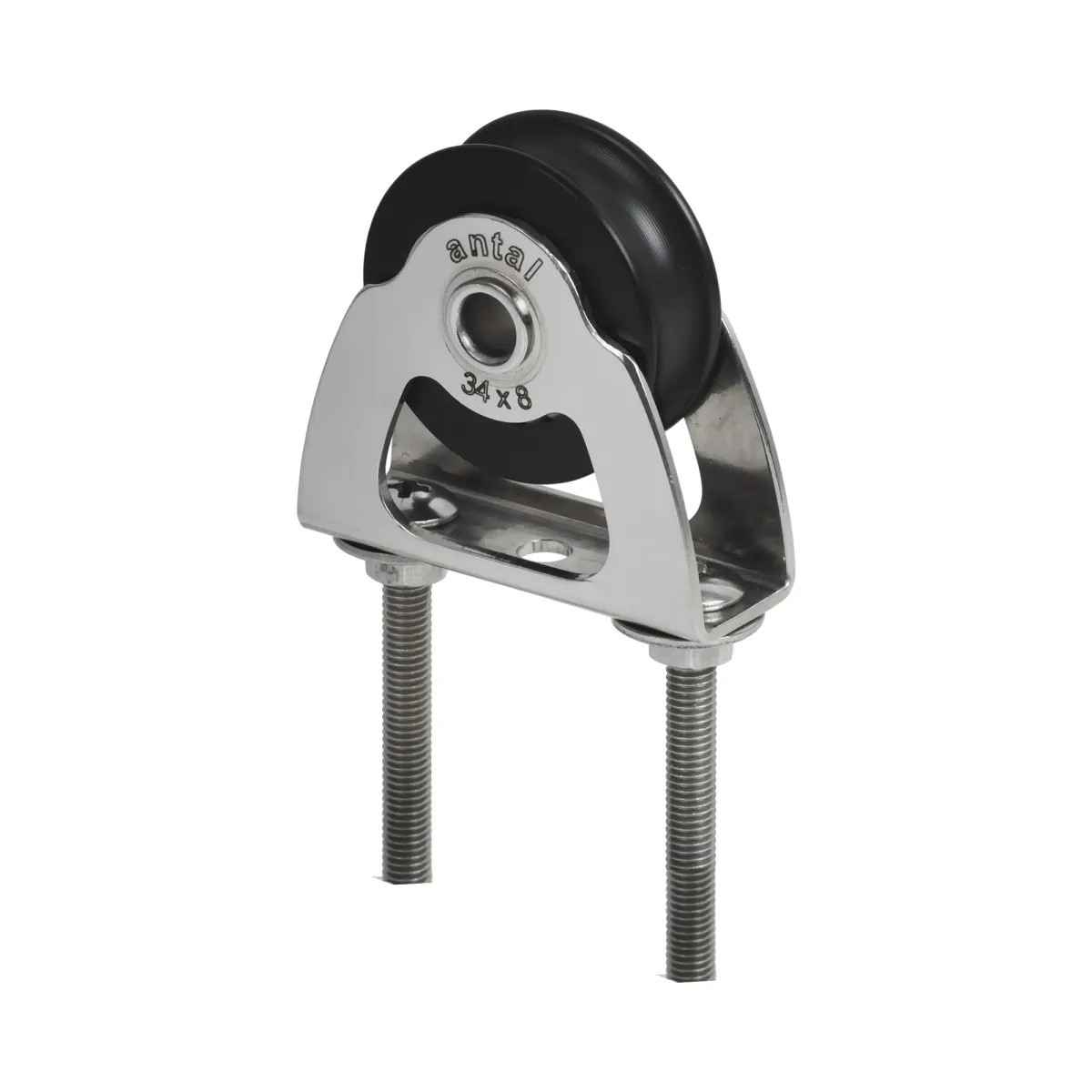

Vertical fix, sheave Ø34, SWL 400 kg.
This model ca be grouped in battery, joined by a central pivot. Add the number of elements to the model code, as in the following example:
00323/2, 00323/3, 00323/n respectively for batteries from 2, 3, N° pieces.
This model ca be grouped in battery, joined by a central pivot. Add the number of elements to the model code, as in the following example:
00323/2, 00323/3, 00323/n respectively for batteries from 2, 3, N° pieces.
Technical Characteristics:
| Length (L): | Width (W): |
| 48 mm | 18 mm |
| Height (H): | Ø sheave (D): |
| 45 mm | 34 mm |
| Side bearing: | Weight: |
| Delrin balls | 55 gr |
| Ø max line: | A: |
| 6 mm | 15 mm |
| SWL: | Material: |
| 400 kg | S.Steel |
| Sheave material: | Fixing screws: |
| Resin | 2 x Ø5 mm |
