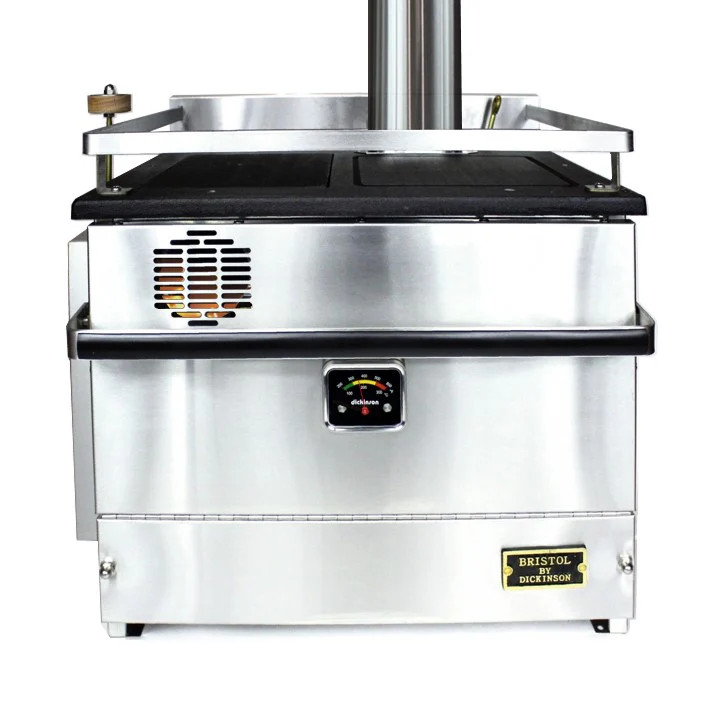

DICKINSON BRISTOL DIESEL STOVE

BRISTOL DIESEL STOVE

The Bristol Cookstove is our smallest cookstove. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.

 Efficient and Compact: The Bristol Cookstove is a small, cost-effective diesel-burning stove that provides comfortable, dry heat. It also features a cast iron cooktop for cooking.

• Sailboat Installation: Designed for port or starboard-facing installation on sailboats.
• Easy Installation:
• Requires 4” diameter chimney parts.
• Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
• For chimneys 6ft or longer, a barometric damper is highly recommended.
• Needs a permanent fresh air vent in the unit's area.
• Design Features:
• Stylish laser-cut design in 304 stainless steel.
• Produces dry heat to eliminate moisture inside the vessel.
• Draft Assist Fan:
• Includes a 12v fan for start-up and draft assistance (can be converted to 24v and 32v). Refer to the fan wiring diagram.
• Fuel Options:
• Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
• Hot Water Option:
• Can add a 1-turn hot water coil to heat 5-10 gallons of water.
• Specifications:
• Width: 21″
• Height: 19.25″
• Depth: 18.25″
• Weight: 85 lbs.
• Oven Size:
• Width: 9”
• Depth: 11.25”
• Height: 8”
• Fuel Consumption (24hr):
• Low: 1.30 gal
• High: 3.20 gal
• Heat Output:
• Low: 6500 BTU
• High: 16250 BTU
