DICKINSON ATLANTIC DIESEL STOVE

ATLANTIC DIESEL STOVE

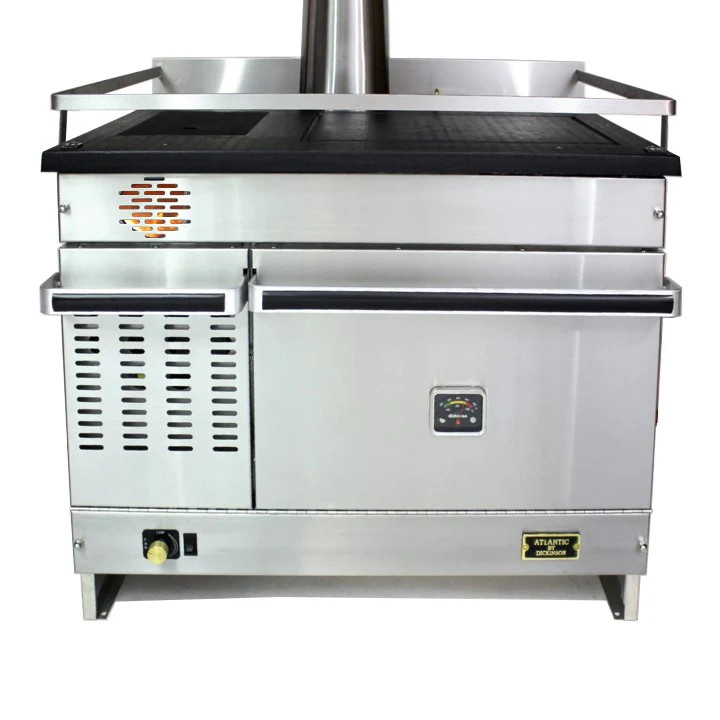

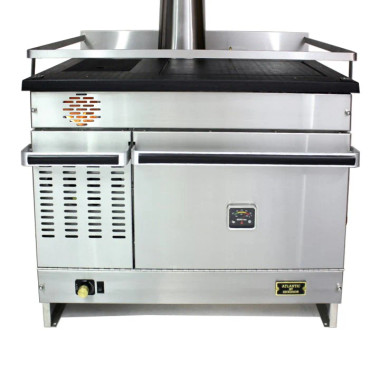

The Atlantic Cookstove is our largest stove and is equipped with a larger diesel burner than our other stoves. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.

• Powerful and Spacious: The Atlantic Cookstove boasts our largest diesel burner for maximum heating capacity. This attractive, cost-effective stove provides comfortable, dry heat and includes a cast iron cooktop for versatile cooking.
• Easy Installation:
• Requires 5” diameter chimney parts.
• Ideal chimney length is 6ft with no elbows, but a minimum of 4ft and a maximum of 8ft is required.
• For chimneys 6ft or longer, a barometric damper is highly recommended.
• Requires a permanent fresh air vent in the unit's area.
• Design Features:
• Features a stylish laser-cut design in 304 stainless steel.
• Produces dry heat to eliminate moisture inside the vessel.
• Sailboat Installation:
• Must face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow, especially on heels up to 15 degrees.
• Draft Assist Fan:
• Comes with a 12v fan for start-up and draft assistance (can be converted to 24v and 32v). Refer to the fan wiring diagram.
• Fuel Options:
• Comes with a valve factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
• Hot Water Options:
• Can add a 1-turn hot water coil to heat 5-10 gallons of water. For larger quantities, a 2-turn coil can heat 15-20 gallons.
• Specifications:
• Width: 30.50″
• Height: 28.75″
• Depth: 23″
• Weight: 189 lbs.
• Oven Size:
• Width: 16”
• Depth: 14.5”
• Height: 12”
• Fuel Consumption (24hr):
• Low: 1.89 gal
• High: 4.50 gal
• Heat Output:
• Low: 8125 BTU
• High: 24375 BTU
