Product Description

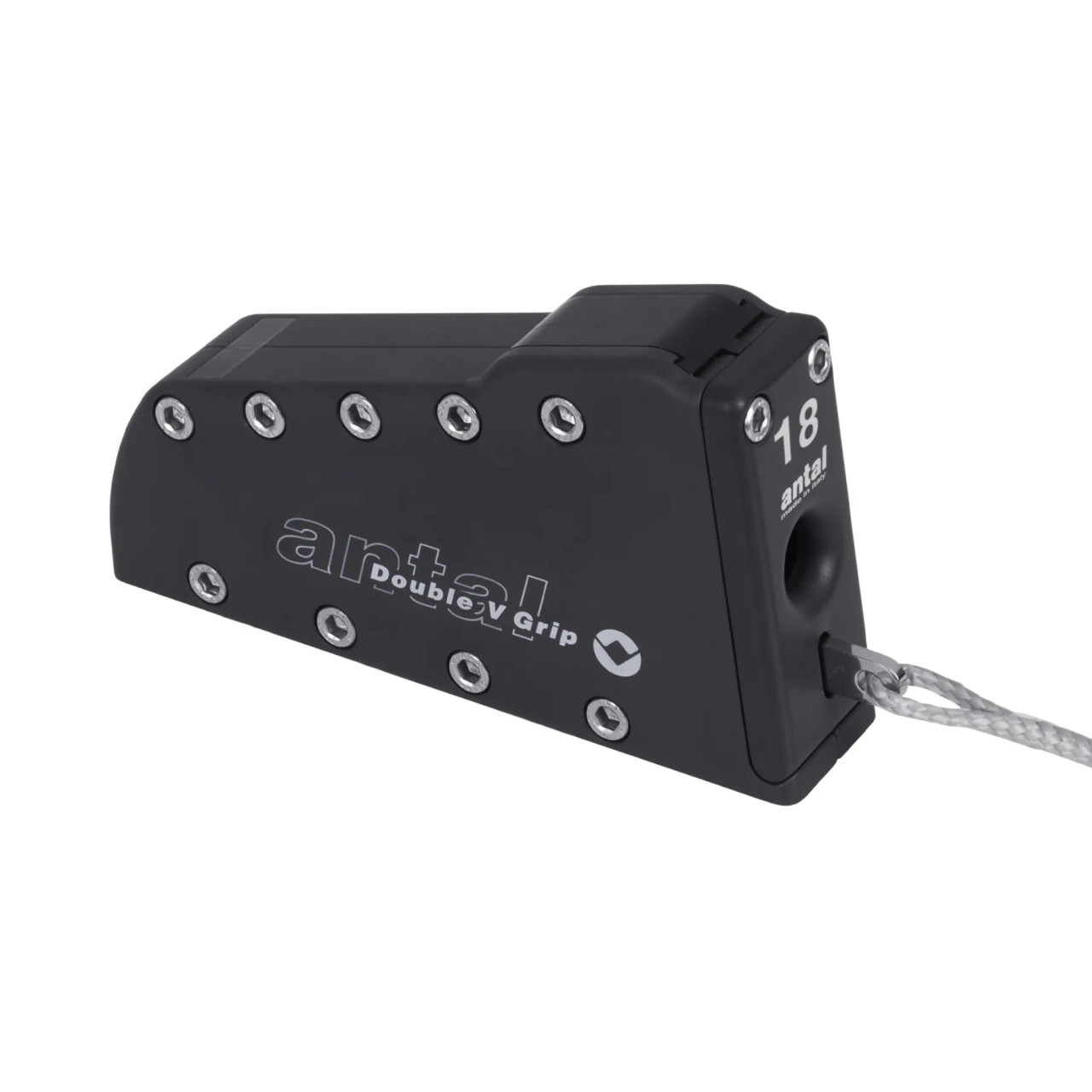

Antal Standard Double V-Grip Jammer Clutch - Single Line - Remote Release
Technical Characteristics:
| Models : | 505.082 | 505.102 | 505.122 | 505.142 | 505.162 | 505.182 |
| Ø Line Diameter | 8 mm | 10 mm | 12 mm | 14 mm |
16 mm |
18 mm |
| Length (L) | 126 mm | 141 mm | 167 mm | 183 mm | 209 mm | 209 mm |
| Width (W) | 34 mm | 34 mm | 43 mm | 43 mm | 50 mm | 50 mm |
|
Height (H)
|
86 mm | 90 mm | 108 mm | 113 mm | 125 mm | 125 mm |
|
Weight
|
0,600 kg | 0,680 kg | 1,180 kg | 1,300 kg | 2,200 kg | 2,200 kg |
|
SWL (Max Load)
|
1500 kg | 2000 kg | 3000 kg | 4000 kg | 5000 kg | 6000 kg |
| Fixing Screws | 4 x Ø8 mm | 4 x Ø8 mm | 4 x Ø10 mm | 4 x Ø10 mm | 4 x Ø12 mm | 4 x Ø12 mm |
| 2D Drawing | 505.082 | 505.102 | 505.122 | 505.142 | 505.162 | (EXPL)505.182 |
