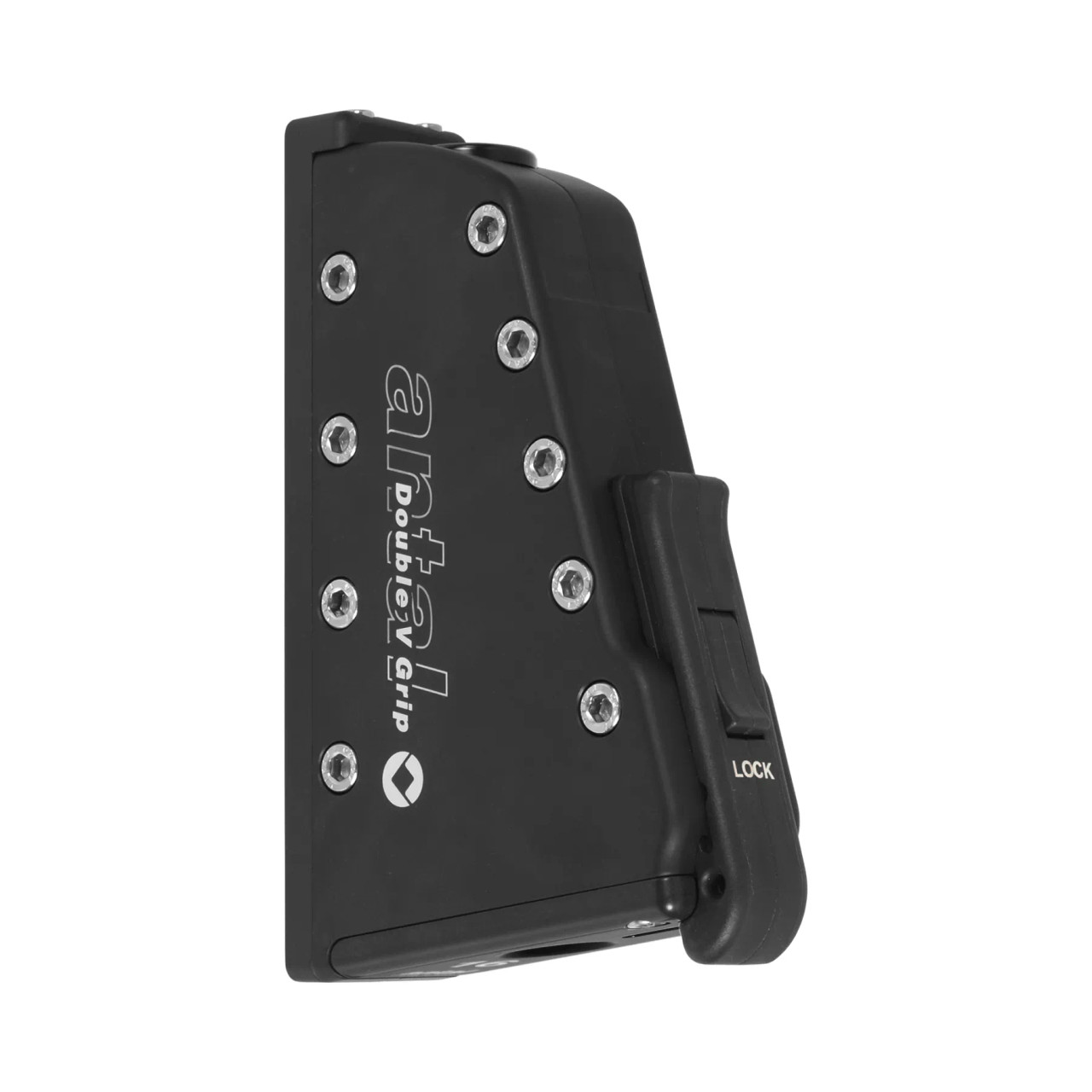

Antal Vertical Mounting Double V-Grip Jammer Clutch - Single Line - Manual Release
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
505.##6
Product Description
Antal Standard Double V-Grip Jammer Clutch - Single Line - Manual Release
Technical Characteristics:
| Models : | 505.086 | 505.106 | 505.126 | 505.146 | 505.166 | 505.186 |
| Ø Line Diameter | 8 mm | 10 mm | 12 mm | 14 mm |
16 mm |
18 mm |
| Length (L) | 134 mm | 149 mm | 178 mm | 194 mm | 218 mm | 218 mm |
| Width (W) | 34 mm | 34 mm | 43 mm | 43 mm | 50 mm | 50 mm |
|
Height (H)
|
93 mm | 97 mm | 118 mm | 123 mm | 135 mm | 135 mm |
|
Weight
|
0,600 kg | 0,680 kg | 1,180 kg | 1,300 kg | 2,200 kg | 2,200 kg |
|
SWL (Max Load)
|
1500 kg | 2000 kg | 3000 kg | 4000 kg | 5000 kg | 6000 kg |
| Fixing Screws | 4 x Ø6 mm | 4 x Ø8 mm | 4 x Ø10 mm | 4 x Ø10 mm | 4 x Ø12 mm | 4 x Ø12 mm |
| 2D Drawing | 505.086 | 505.106 | 505.126 | 505.146 | 505.166 | (WEB)505.186 |
