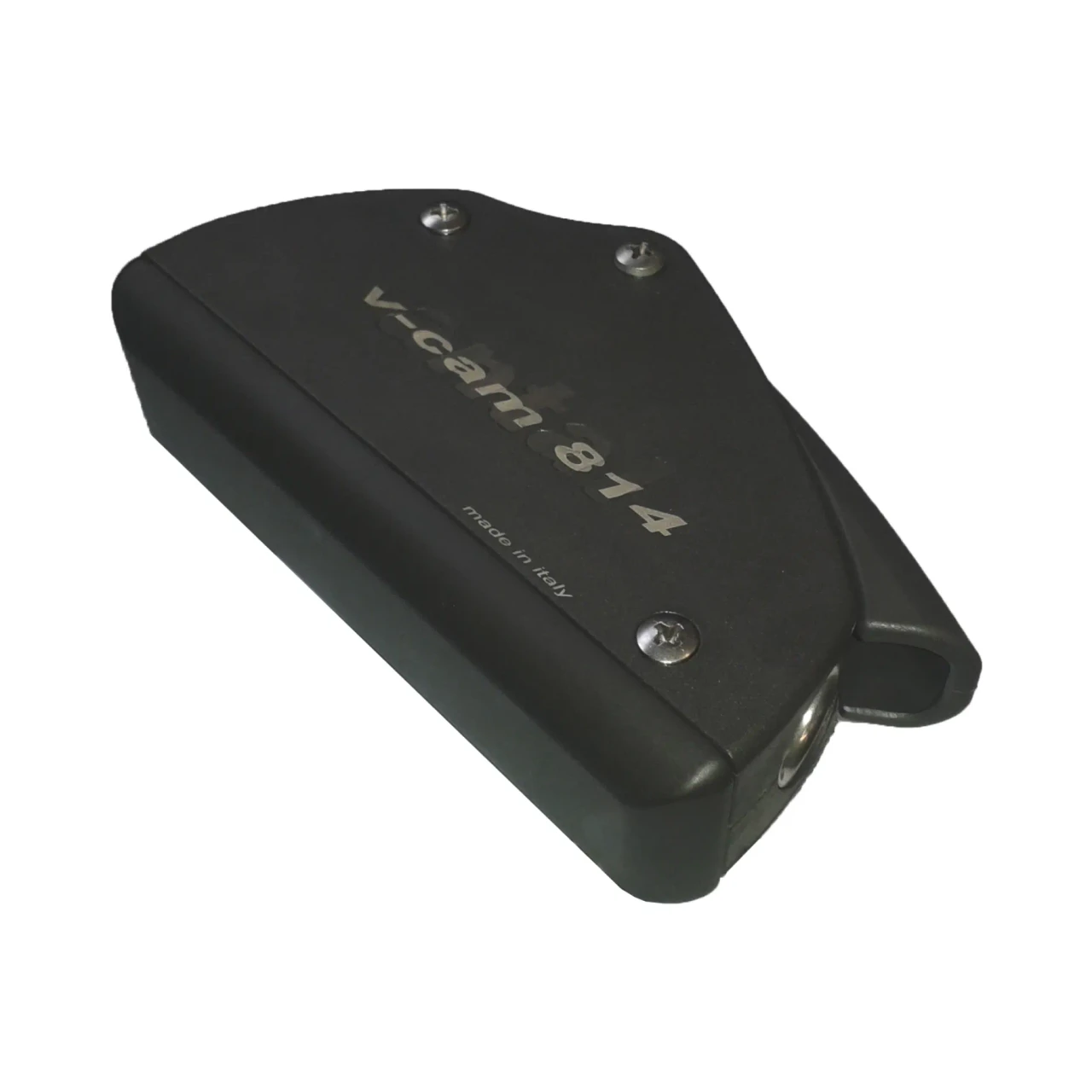

Antal Black Lateral Mount V-Cam 814 single clutch for Ø8-10mm lines
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
509.111H
)
Product Description
V-Cam 814, lateral mount clutch, for lines Ø8-10.
V-Cam 814 has a box-structure in UV-resistant resin with S.Steel reinforcements, aluminium base, V-Cam and aligning bushing in AISI316.
It can be completely dismantled for simple maintenance and repairing.
Retrieval can be performed with the stopper closed; the operation automatically secures itself in the new position.
Technical Characteristics:
| Model : | 509.111H |
| Ø Line Diameter | 8-10mm |
| Length (L) | 154,5mm |
| Width (W) | 36 mm |
|
Height (H)
|
78 mm |
|
Weight
|
0,72 kg |
| MWL | 850 |
| Fixing Screws | 2 x Ø8 mm + 1 x Ø5 mm |
