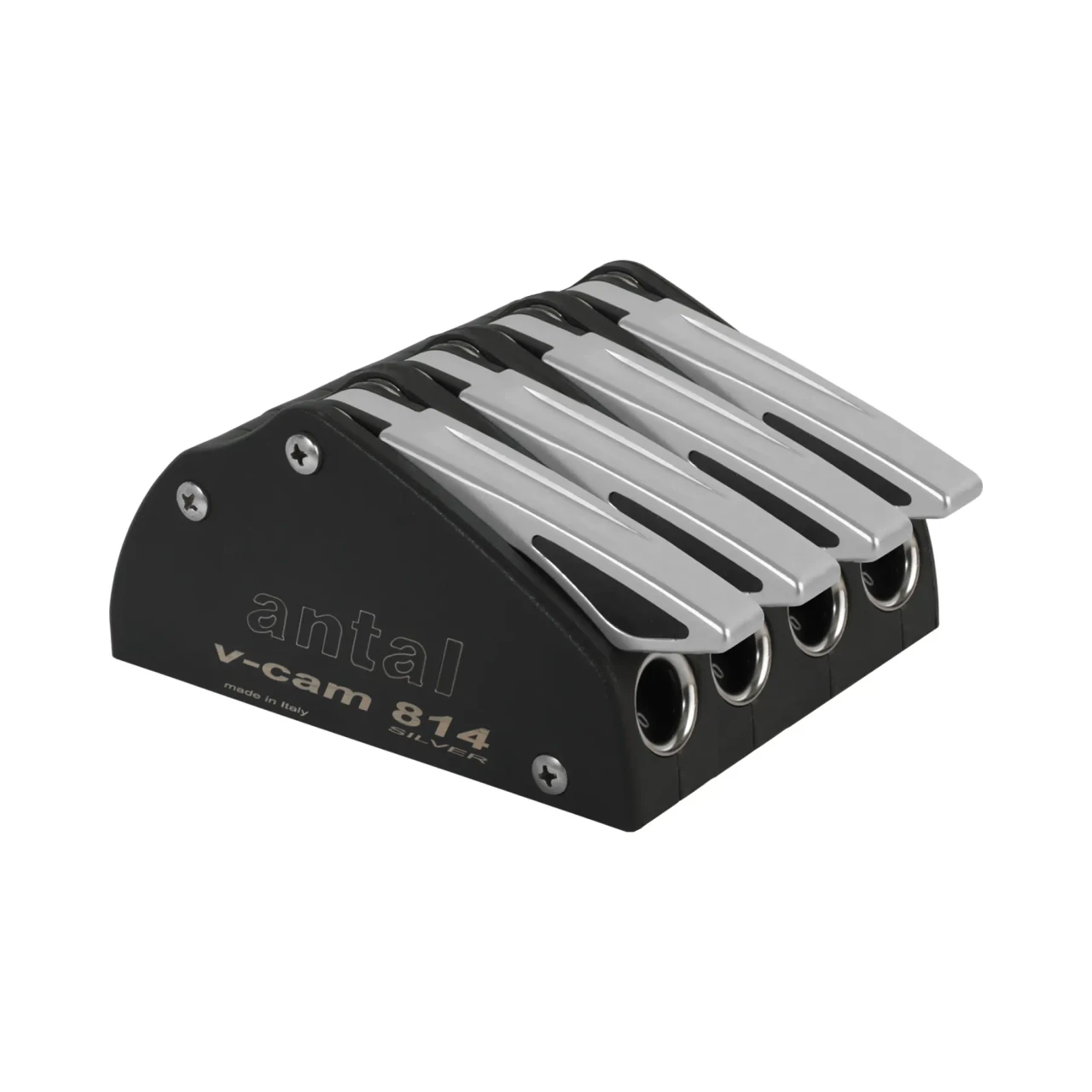

Antal Silver V-Cam 814 Quadruple clutch for Ø8-10mm lines
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
549.141
Product Description
V-Cam 814 with silver anodized aluminium lever, quadruple clutch, for lines Ø8-10.
V-Cam 814 has a box-structure in UV-resistant resin with S.Steel reinforcements, aluminium base, V-Cam and aligning bushing in AISI316.
It can be completely dismantled for simple maintenance and repairing.
Retrieval can be performed with the stopper closed; the operation automatically secures itself in the new position.
Technical Characteristics:
|
Length (L):
|
Width (W):
|
|
154,5 mm
|
123 mm |
|
Height (H):
|
Weight:
|
| 78 mm | 2,1 kg |
|
Ø min line:
|
Ø max line:
|
| 8 mm | 10 mm |
| A: | B: |
| 36 mm | 105 mm |
| C: | E: |
| 13,5 mm | 29 mm |
|
MWL:
|
Fixing screws:
|
| 850 kg | 8 x Ø6 mm |
