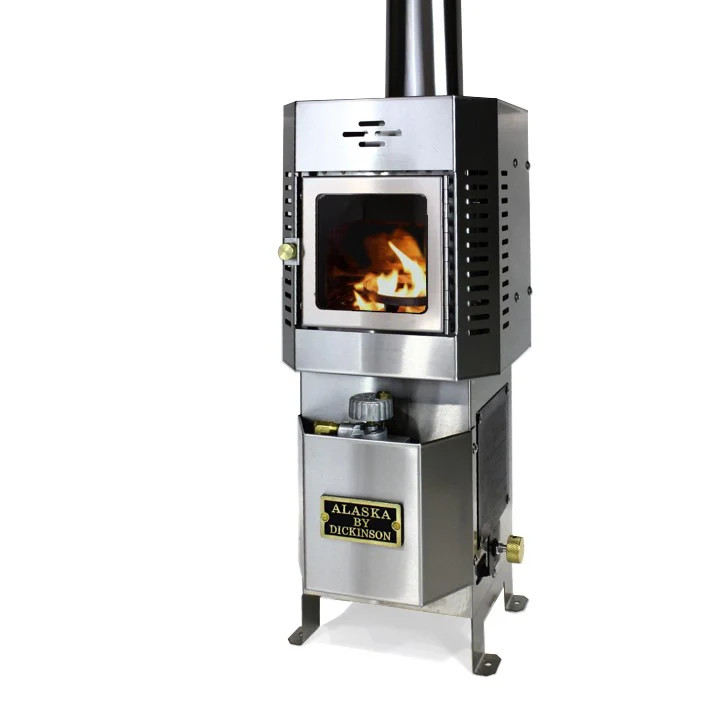

DICKINSON ALASKA DIESEL FLOORMOUNT HEATER

ALASKA DIESEL FLOORMOUNT HEATER

The Alaska Floor Mounted Heater is a compact bulkhead mounted heater. An attractive, economical diesel burning heater, providing comfortable, dry heat.

• Efficient and Compact: The Alaska Heater is a small, budget-friendly diesel heater designed for floor mounting. It provides comfortable, dry heat.
• Easy Installation:
• Requires 3” diameter chimney parts.
• Needs a minimum 4ft, maximum 8ft of chimney (straight run with no elbows is best).
• For chimneys 6ft or longer, we recommend a barometric damper.
• Requires a permanent fresh air vent in the unit's area.
• Design Features:
• Stylish laser-cut design in 304 stainless steel.
• Produces dry heat to remove moisture inside the vessel.
• Sailboat Installation:
• Should face fore or aft. For port or starboard facing, mount the valve on the side to ensure proper fuel flow even on heels up to 15 degrees.
• Draft Assist Fan:
• Comes with a 12v fan for start-up and draft assistance (can be converted to 24v and 32v). Refer to the fan wiring diagram.
• Fuel Options:
• Valve is factory set for #2 diesel, but valves for kerosene & #1 diesel are also available.
• Hot Water Option:
• Can add a 1-turn hot water coil to heat 5-10 gallons of water.
• Specifications:
• Width: 23″
• Height: 13″
• Depth: 13″
• Weight: 19 lbs.
• Fuel Consumption (24hr):
• Low: 1.29 gal
• High: 3.20 gal
• Heat Output:
• Low: 6500 BTU
• High: 16250 BTU
