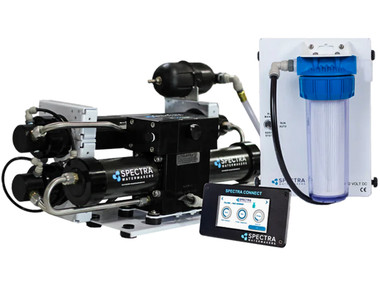

Spectra CT-340CS (Compact)

The Catalina 340C Compact produces 14 gallons (53 liters) of water per hour, making it perfect for midsize yachts with two to four people onboard. It offers the same dependable performance as the the other Catalina lines but with two shorter membranes for maximum installation versatility. The Catalina uses the Spectra mag drive feed water pump, ensuring the system is extremely quiet, energy-efficient, and reliable. It comes standard with the Spectra Connect controller. The Spectra Connect offers added features such as Fill Tank mode, customizable Auto Run mode, One-Touch Sensor Calibration, and suggested maintenance intervals displayed on the dashboard. You can also add the Z±ION Membrane Protection System to extend storage times for up to 30 days. The Catalina Connect now includes a 48-volt option, ideal for EV (Electric) boats!

Quick Facts:

• Control your Spectra Watermaker directly from your Multifunction Display (MFD)
Available for most Garmin, Raymarine, and Navico/Simrad helm stations
• Completely automated with the Spectra Connect Controller
• Compact modular design for easy installation
• Spectra’s unique Clark Pump ensures efficiency and reliability
• High and low speed operation for customizable power management and output volume
• Low power consumption—can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade mag drive pump with run dry protection
• Z±ION Compatible

Catalina 340C Electrical Specifications

CATALINA 340C 12V

• • Power Supply Voltage: 12 VDC
  • Bench Test: 13.8 V / 19.5 A
  • Power Consumption: 270 W
  • Efficiency: 19 Wh/gal

CATALINA 340C 24V

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27.2 V / 9.6 A
  • Power Consumption: 262 W
  • Efficiency: 18 Wh/gal

CATALINA 340C 48V

• • Power Supply Voltage: 48 VDC
  • Bench Test: 48.2 V / 5.4 A
  • Power Consumption: 268 W
  • Efficiency: 18.3 Wh/gal

CATALINA 340C W/SHORT MEMBRANE 12V

• • Power Supply Voltage: 12 VDC
  • Bench Test: 13.9 V / 20.4 A
  • Power Consumption: 285 W
  • Efficiency: 20 Wh/gal

CATALINA 340C W/SHORT MEMBRANE 24V

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27.2 V / 9.9 A
  • Power Consumption: 270 W
  • Efficiency: 20 Wh/gal

CATALINA 340C W/SHORT MEMBRANE 48V

• • Power Supply Voltage: 48 VDC
  • Bench Test: 48.0 V / 5.9 A
  • Power Consumption: 285 W
  • Efficiency: 20.1 Wh/gal

Catalina 340C Compact - Remote Manual Installation and Operating Manual

Catalina 340C Compact Watermaker Product Specifications
