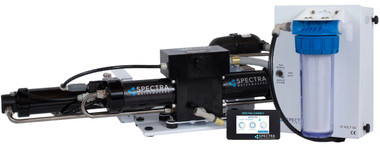

Spectra CT-340C

The Cape Horn 330 Extreme Compact Remote produces 15 gallons (56 liters) of water per hour. The Cape Horn Extreme is the top choice for serious offshore racing campaigns like the Volvo Ocean Race and Clipper Challenge. Renowned for its reliability and durability, it features diaphragm feed pumps that can operate in parallel, allowing for high efficiency with a single pump or high output with two pumps. The system's rugged mechanical controls and gauges make it perfect for hands-on racers and cruisers.

Quick Facts:

• Control your Spectra Watermaker directy from your Multifunction Display (MFD)
Available for most Garmin, Raymarine and Navico/Simrad helm stations
• Completely automated with the Spectra Connect Controller
• Compact modular design
• Spectra’s unique Clark Pump ensures efficiency and reliability
• High and low speed operation for customizable power management and output volume
• Low power consumption—can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade mag drive pump with run dry protection
• Z±ION Compatible

Catalina 340C Electrical Specifications

CATALINA 340C 12V

• • Power Supply Voltage: 12 VDC
  • Bench Test: 13.8 V / 19.5 A
  • Power Consumption: 270 W
  • Efficiency: 19 Wh/gal

CATALINA 340C 24V

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27.2 V / 9.6 A
  • Power Consumption: 262 W
  • Efficiency: 18 Wh/gal

CATALINA 340C 48V

• • Power Supply Voltage: 48 VDC
  • Bench Test: 48.2 V / 5.4 A
  • Power Consumption: 268 W
  • Efficiency: 18.3 Wh/gal

CATALINA 340C W/SHORT MEMBRANE 12V

• • Power Supply Voltage: 12 VDC
  • Bench Test: 13.9 V / 20.4 A
  • Power Consumption: 285 W
  • Efficiency: 20 Wh/gal

CATALINA 340C W/SHORT MEMBRANE 24V

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27.2 V / 9.9 A
  • Power Consumption: 270 W
  • Efficiency: 20 Wh/gal

CATALINA 340C W/SHORT MEMBRANE 48V

• • Power Supply Voltage: 48 VDC
  • Bench Test: 48.0 V / 5.9 A
  • Power Consumption: 285 W
  • Efficiency: 20.1 Wh/gal

Catalina 340C - Remote Manual Installation and Operating Manual

Catalina 340C Watermaker Product Specifications

Diagram 1

Diagram 2

Diagram 3

Diagram 4
