West System 306-25 Metering Pump (5:1 Ratio)
Hover over image to zoom
Product Description

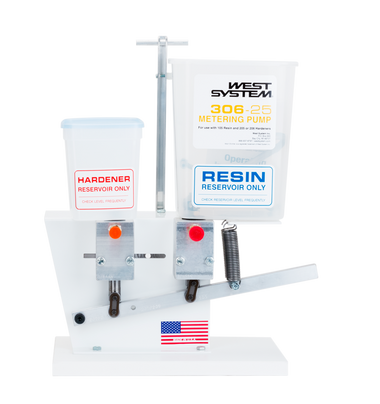

West System 306-25 Metering Pump (5:1 Ratio)
For metering larger quantities of 105 Epoxy Resin® and 205 Fast Hardener® or 206 Slow Hardener®. The 306-25 Metering Pump will reduce mixing time and waste on large projects. A carrying handle allows you to move the pump where the work is. Reservoirs hold one gallon of resin and one quart of hardener. Dispenses approximately 0.5 fl oz of resin/hardener per pump stroke (about one qt per minute).
Designed for Use with:
- 105 Epoxy Resin and
- 205 Fast Hardener or
- 206 Slow Hardener
Product Specifications:
Dispenses five parts resin and one part hardener (5:1) by volume.
- Two separate parallel pump systems, one for the resin and one for the hardener
- Single lever pump-system
- The pump delivers 0.5 fl oz of resin and hardener per full stroke
- Calibrated for WEST SYSTEM® 5:1 ratio epoxies (205 Fast Hardener or 206 Slow Hardener)
- Can be converted to a 3:1 ratio
Product Uses:
Streamlines the metering process for high-volume users
- 105 Resin and 205 or 206 Hardeners
- Quickly dispenses proper mix for large batch processes
- Reduces mixing time on large projects
- Convenient carrying handle to bring the pump where the work is
Ratio Ranges:
Check the ratio of resin to hardener dispensed by the pump before using. Recheck the ratio periodically or if you later experience incomplete or unusually fast or slow curing. Ratio ranges for pumps can be found in the TDS.
