Series 30 High Load Lashing Orbit Block™
Hover over image to zoom
Product Description

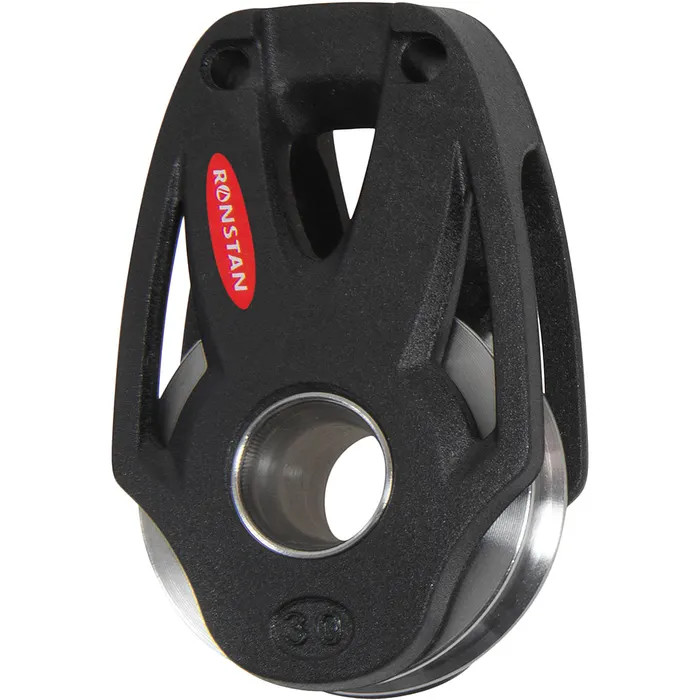

Series 30 High Load Lashing Orbit Block™
Single sheave high load block with becket option and lashing head
FEATURES
Ultra-strong HHL sheave and bearing race: Grade 2205 stainless steel, Balls: Grade 316.
RF35109HL features class leading dynamic and static load ratings for a 30mm block.
Frame/cheeks: Glass fibre reinforced nylon.
Low profile and compact, through sheave becket.
Specifications
| Max. Rope diameter (in) | 5/16 |
|---|---|
| M.W.L. (lb) | 1210* |
| Sheave diameter (in) | 1 3/16 |
| B.L. (lb) | 3630 |
| Weight (oz) | 1.5 |
| Notes: | Both the MWL and BL are dependent on the strength of the line used to lash the block through the central hub. Please note DSH-4GRY Soft Shackle has a BL of 500kg, which is lower than the RF35109HL. |
