BLOCK D 180 ON PADEYE $0.00
STAINLESS STEEL BLOCK ON PADEYE
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
S0614
Product Description

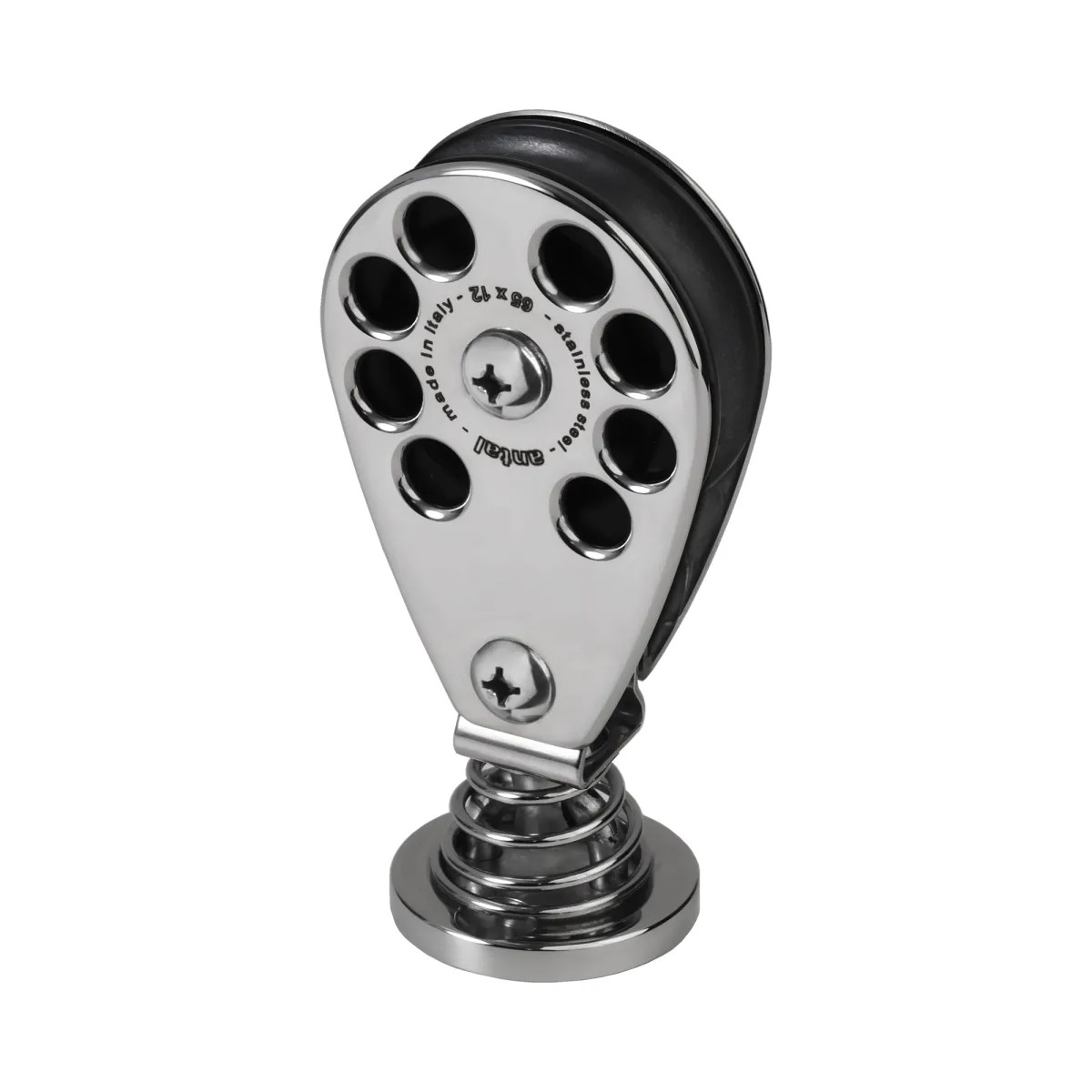

S.Steel classic series, block on pad eye
Technical Characteristics:
| Material: | S.Steel |
| Sheave material: | Resin |
| Side bearing: |
Delrin balls |
| Radial bearing: |
Composite Fibre |
Normal Pad Eye:
| Ø65 mm | Ø75 mm | Ø90 mm | Ø120 mm | Ø150 mm | Ø180 mm | ||
| Ø sheave (D): | 60 mm | 70 mm | 90 mm | 120 mm | 150 mm | 180 mm | |
| Ø max line: | 12 mm | 14 mm | 16 mm | 18 mm | 20 mm | 24 mm | |
| Pad eye Mod: | 7206 | 7208 | 7210 | 7214 | 7216 | 7220 | |
| Fixing screws: | 2 x Ø6 mm | 4 x Ø6 mm | 4 x Ø8 mm | 4 x Ø10 mm | 6 x Ø10 mm |
6 x Ø10 mm
|
|
| Ø pad eye base: |
44 mm | 65 mm | 75 mm | 80 mm | 110 mm | 129 mm |
Screwed Pad Eye:
| Ø65 mm | Ø75 mm | Ø90 mm | Ø120 mm | Ø150 mm | Ø180 mm | ||
| Ø sheave (D): | 65 mm | 75 mm | 90 mm | 120 mm | 150 mm | 180 mm | |
| Ø max line: | 12 mm | 14 mm | 16 mm | 18 mm | 20 mm | 24 mm | |
| Pad eye Mod: | 7306 | 7308 | 7310 | 7314 | 7316 | 7320 | |
| Fixing screws: | 2 x Ø6 mm | 4 x Ø6 mm |
4 x Ø8 mm
|
4 x Ø10 mm | 6 x Ø10 mm |
6 x Ø10 mm
|
|
| Ø pad eye base: | 54 mm | 70 mm | 80 mm | 90 mm | 120 mm | 120 mm |
