ROLLER CLEAT SIZE 350 SILVER
Hover over image to zoom
Antal
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Product Description

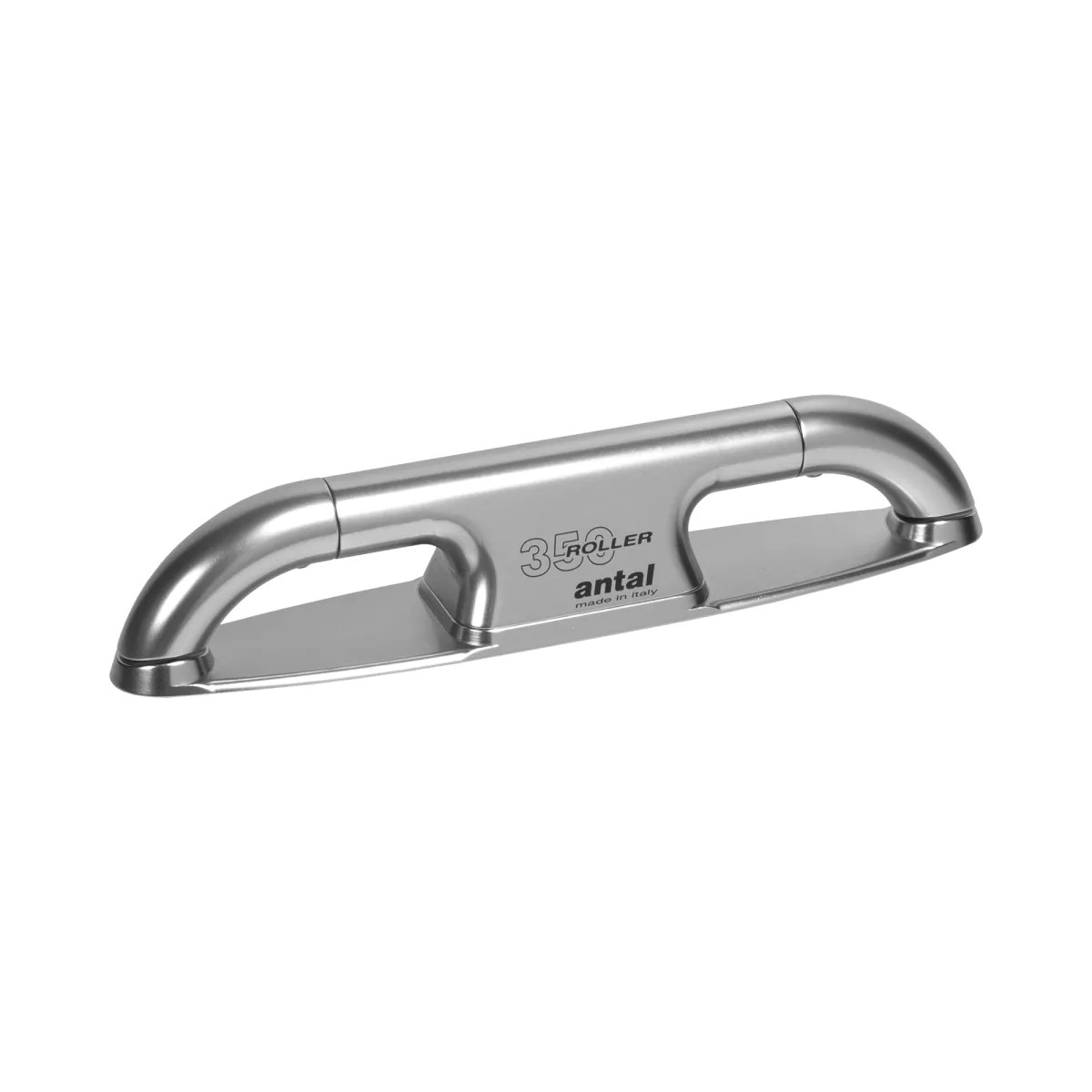

Roller cleat in silver anodized aluminum for boats up to 58'.
Roller is a folding cleat with rotating horns: with a simple hand movement, the horn of the cleat can be opened or closed simply by rotating it, even with the mooring line in place.
When Roller is open: the mooring line can be easily tied or released.
When Roller is closed: this position minimizes the overall dimensions and prevents other lines from becoming unintentionally caught.
The Safe Working Load (SWL) may vary depending on the pulling direction and on the type of mooring line used.
Mooring knot: the maximum load depends on the pulling direction (see drawing).
Spliced mooring: the working load remains constant regardless of the pulling direction (see drawing).
TECHNICAL CHARACTERISTICS
| Length (L): | Width (W): |
| 346 mm | 64 mm |
| Height (H): | Boat Length: |
| 65 mm | Boats up to 58' |
| Weight: | SWL |
| 1,33 kg | 7500 kg |
| Material: | Fixing Screws: |
| Aluminum | 4 x Ø12 mm + 2 x Ø6 mm |
| D: | |
| 31 mm |
