Quick Wireless Chaincounter system - Quote Only
Hover over image to zoom
Product Description

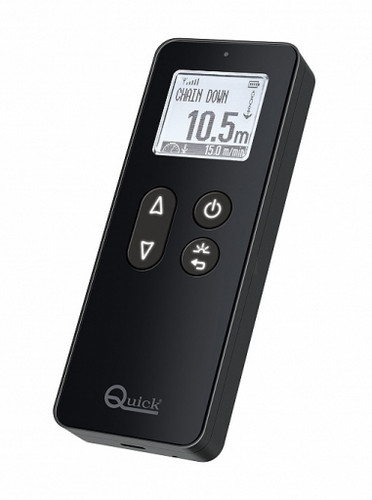

CHC WH
The wireless chaincounter system consists of two units: the CHC WH handheld control unit and the CHC WA actuator unit.
- Graphical LCD display easily readable from any angles
- Automatic display contrast compensation
- Backlit display with 5 brightness levels
- Backlit function keys
- Built-in battery rechargeable via USB-C or wireless charger
- Automatic key lock with battery-saving function
- Automatic shutdown in case of inactivity
| Model | CHC WH |
|
Power supply
|
Integrated rechargeable Lithium Polymer battery |
| Nominal battery capacity | 320 mAh |
| Carrier frequency | ISM 2.4 Ghz (2402 - 2483 Mhz) |
| Modulation | FSK |
| Autonomy in continuous transmission | 8 h |
| Directive compliance | 2014/53/EU (RED) |
| Charging | USB-C and Wireless |
| Operating temperature | -20°C ÷ +60°C (0° ÷ +45° on charging) |
| Dimensions (W x H x D) | 51.9 x 1 32.5 x 18.35 mm |
| Protection rating | IP 67 |
| Weight | 90 g (115 g with protective cover) |
Dimensions
Supplied accessories standard
CHC WA - Wireless Actuator
