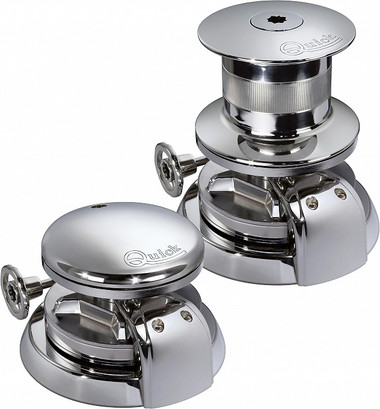

Quick Roy - RY6 Vertical Windlasses - Quote Only
Hover over image to zoom
Product Description
- Vertical windlasses
- Stainless steel AISI 316 base, drum and gypsy cover
- With and without drum
- Integrated sensor and magnet for chain counter
- Safety mechanical band brake
- IP67 watertight motor (HYDRO)
- Anodized aluminium gearbox
| ROY | 3000 W DC | 18 - 26 m | 60 - 85 ft |
| ROY | 3500 W DC | 22 - 29 m | 75 - 95 ft |
| ROY | 4000 W AC | 18 - 29 m | 60 - 95 ft |
| ROY | 5500 W AC | 22 - 32 m | 75 - 105 ft |
| ROY | HYDRO | 20 - 32 m | 60 - 105 ft |
Gypsy and Drum Ø 200 mm / 7" 7/8
 |
12/13mm |
14mm - 1/2" |
16mm |
|||||
 |
12mm |
13mm |
7/16" |
14mm |
14mm |
1/2" |
16mm |
16mm |
|
ISO |
DIN 766 |
G4 |
DIN 766 |
ISO |
G4 |
DIN 766 |
ISO |
|
 |
||||||||
| Available Models | |
| FSRY30240012A00 | RY3024 7/16: WINDLASS-ROY 3000W 24V, 7/16" 12mm GYPSY |
| FSRY30240014A00 | RY3024 1/2: WINDLASS-ROY 3000W 24V, 1/2" 14mm GYPSY |
| FSRY30240016A00 | RY3024 16mm: WINDLASS-ROY 3000W 24V, 16mm GYPSY |
| FSRY3024D012A00 | RY3024D 7/16: WINDLASS-ROY 3000W 24V, 7/16" 12mm GYPSY w/DRUM |
| FSRY3024D014A00 | RY3024D 1/2: WINDLASS-ROY 3000W 24V, 1/2" 14mm GYPSY w/DRUM |
| FSRY3024D016A00 | RY3024D 16mm: WINDLASS-ROY 3000W 24V, 16mm GYPSY w/DRUM |
| FSRY35240012A00 | RY3524 7/16: WINDLASS-ROY 3500W 24V, 7/16" 12mm GYPSY |
| FSRY35240014A00 | RY3524 1/2: WINDLASS-ROY 3500W 24V, 1/2" 14mm GYPSY |
| FSRY35240016A00 | RY3524 16mm: WINDLASS-ROY 3500W 24V, 16mm GYPSY |
| FSRY3524D012A00 | RY3524D 7/16: WINDLASS-ROY 3500W 24V 7/16" 12mm GYPSY w/DRUM |
| FSRY3524D014A00 | RY3524D 1/2: WINDLASS-ROY 3500W 24V 1/2" 14mm GYPSY w/DRUM |
| FSRY3524D016A00 | RY3524D 16mm: WINDLASS-ROY 3500W 24V 16mm GYPSY w/DRUM |
| FSRY40TR0012A00 | RY4000T 7/16: WINDLASS-ROY 4000W 230V-400V, 7/16" 12mm GYPSY |
| FSRY40TR0014A00 | RY4000T 1/2: WINDLASS-ROY 4000W 230V-400V, 1/2" 14mm GYPSY |
| FSRY40TR0016A00 | RY4000T 16mm: WINDLASS-ROY 4000W 230V-400V, 16mm GYPSY |
| FSRY40TRD012A00 | RY4000TD 7/16: WINDLASS-ROY 4000W 230V-400V, 7/16" 12mm GYPSY w/DRUM |
| FSRY40TRD014A00 | RY4000TD 1/2: WINDLASS-ROY 4000W 230V-400V, 1/2" 14mm GYPSY w/DRUM |
| FSRY40TRD016A00 | RY4000TD 16mm: WINDLASS-ROY 4000W 230V-400V, 16mm GYPSY w/DRUM |
| FSRY55TR0012A00 | RY5500T 5500W 230/400V 12mm R X |
| FSRY55TR0016A00 | RY6 5500AC 5500W 230/400V 16mm |
| FSRY55TRD012A00 | RY5500TD 5500W 230/400V 12mm R DRUM X |
| FSRYHY000016A00 | RY6 HYDRO WINDLASS 16mm |
| FSRYHY00D014A00 | Quick Roy RY6 Hydraulic Windlass, 14mm Gypsy w/ Capstan |
