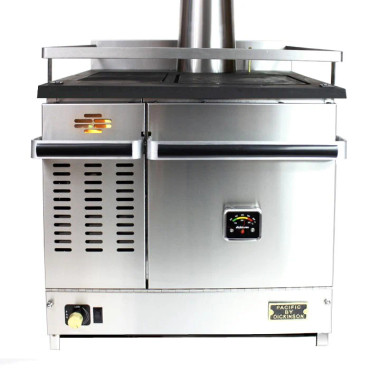

DICKINSON PACIFIC DIESEL STOVE WITH 1 TURN COIL

PACIFIC DIESEL STOVE WITH 1 TURN COIL

The Pacific Cookstove is our most popular model with a standard size to fit most stove cut outs. It is an attractive, economical diesel burning stove, providing comfortable, dry heat with a cast iron cooktop for cooking.

• Popular Size: Fits most standard stove cutouts.
• Efficient Heating: Burns diesel economically, providing cozy, dry heat. Also features a cast iron cooktop for cooking.
• Installation Requirements:
• Requires 5” diameter chimney parts.
• Needs a minimum 4ft, maximum 8ft of chimney (straight run with no elbows is best).
• For chimneys 6ft or longer, we highly recommend a barometric damper.
• Requires a permanent fresh air vent in the unit's area.
• Design Features:
• Attractive laser-cut design in 304 stainless steel.
• Produces dry heat to remove moisture from the vessel.
• Sailboat Installation:
• Must face fore or aft. If port or starboard facing is desired, valve adjustment may be needed.
• Comes with a 12v draft assist fan for start-up and draft assistance (can be converted to 24v and 32v).
• Fuel Options:
• Factory set for #2 diesel, but valves for kerosene & #1 diesel are available.
• Hot Water Coil Option:
• Can add a 1-turn coil to heat 5-10 gallons of water or a 2-turn coil for 15-20 gallons.
• Dimensions:
• Width: 21.75”
• Height: 23.50”
• Depth: 21.50”
• Weight: 126 lbs.
• Oven Size: W10.25” X D13” X H10.5”
• Fuel Consumption (24hr):
• Low: 1.30 gal
• High: 3.20 gal
• Heat Output:
• Low: 6500 BTU
• High: 16250 BTU
