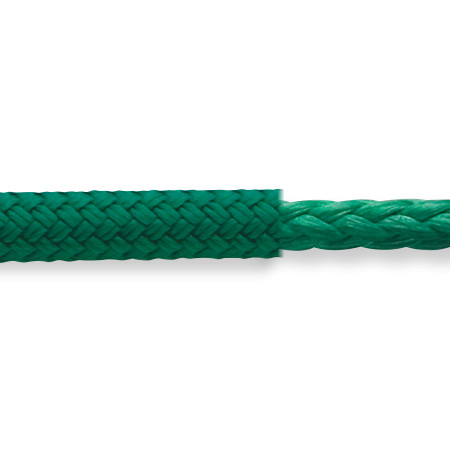

V-100 features a braided 100% Vectran® 12-strand single braid core treated with our unique marine-tech coating with a highly durable and attractive polyester cover.
Product Name | Diameter [mm] | Diameter [inch] | Weight [lbs/100′] | Tensile [lbs] |
---|---|---|---|---|
C282*-05-00600 | 5 | 3/16 | 1.50 | 2,400 |
C282*-06-00600 | 6 | 1/4 | 2.10 | 4,600 |
C282*-08-00600 | 8 | 5/16 | 3.50 | 8,600 |
C282*-09-00600 | 9 | 23/64 | 4.40 | 9,100 |
C282*-10-00600 | 10 | 3/8 | 5.30 | 12,600 |
C282*-11-00600 | 11 | 7/16 | 6.50 | 15,000 |
C282*-12-00600 | 12 | 1/2 | 7.10 | 19,200 |
C282*-14-00600 | 14 | 9/16 | 9.90 | 23,500 |
C282*-16-00600 | 16 | 5/8 | 13.40 | 26,000 |
C282*-18-00600 | 18 | 3/4 | 17.50 | 33,620 |
