New England Ropes HTS-78 - Quote
Hover over image to zoom
Product Description

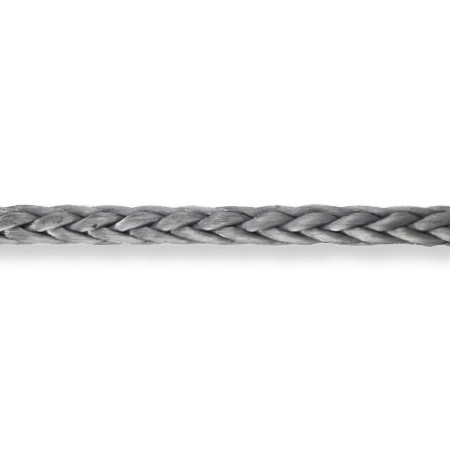

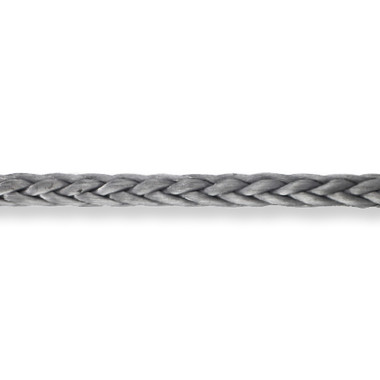

HTS-78
12-strand single braid
HTS-78 features 100% Dyneema® fiber. This 12-strand single braid is treated with our unique marine-tech coating for excellent abrasion and UV resistance.
This ultra-low creep line yields the highest levels of performance, time and again. Benefits include ultra-high tensile, low weight, low stretch, and it floats.
FEATURES
- 12 Strand single braid
- UV resistant
- specific gravity - 0.97
Material: Dyneema® SK78
Applications: cascade lines, halyards, wire rope replacement, cunninhams, vang systems
technical product data
| Product Name | Diameter [mm] | Diameter [inch] | Weight [lbs/100′] | Tensile [lbs] |
|---|---|---|---|---|
| 2 | 3/32 | 0.20 | 1,000 | |
| C142*-03-00600 | 2.5 | 7/64 | 0.28 | 2,200 |
| C142*-04-00600 | 3 | 1/8 | 0.50 | 2,800 |
| C142*-05-00600 | 4 | 5/32 | 0.65 | 4,300 |
| C142*-06-00600 | 5 | 3/16 | 1.20 | 6,050 |
| C142*-08-00600 | 6 | 1/4 | 1.70 | 9,700 |
| C142*-10-00600 | 8 | 5/16 | 2.55 | 14,500 |
| C142*-12-00600 | 10 | 3/8 | 3.40 | 18,800 |
| C142*-14-00600 | 11 | 7/16 | 4.20 | 24,000 |
| C142*-16-00600 | 12 | 1/2 | 6.15 | 34,300 |
| 14 | 9/16 | 7.20 | 42,000 | |
| 16 | 5/8 | 10.10 | 58,000 | |
| 18 | 3/4 | 14.74 | 67,000 | |
| 22 | 7/8 | 18.80 | 97,500 |
