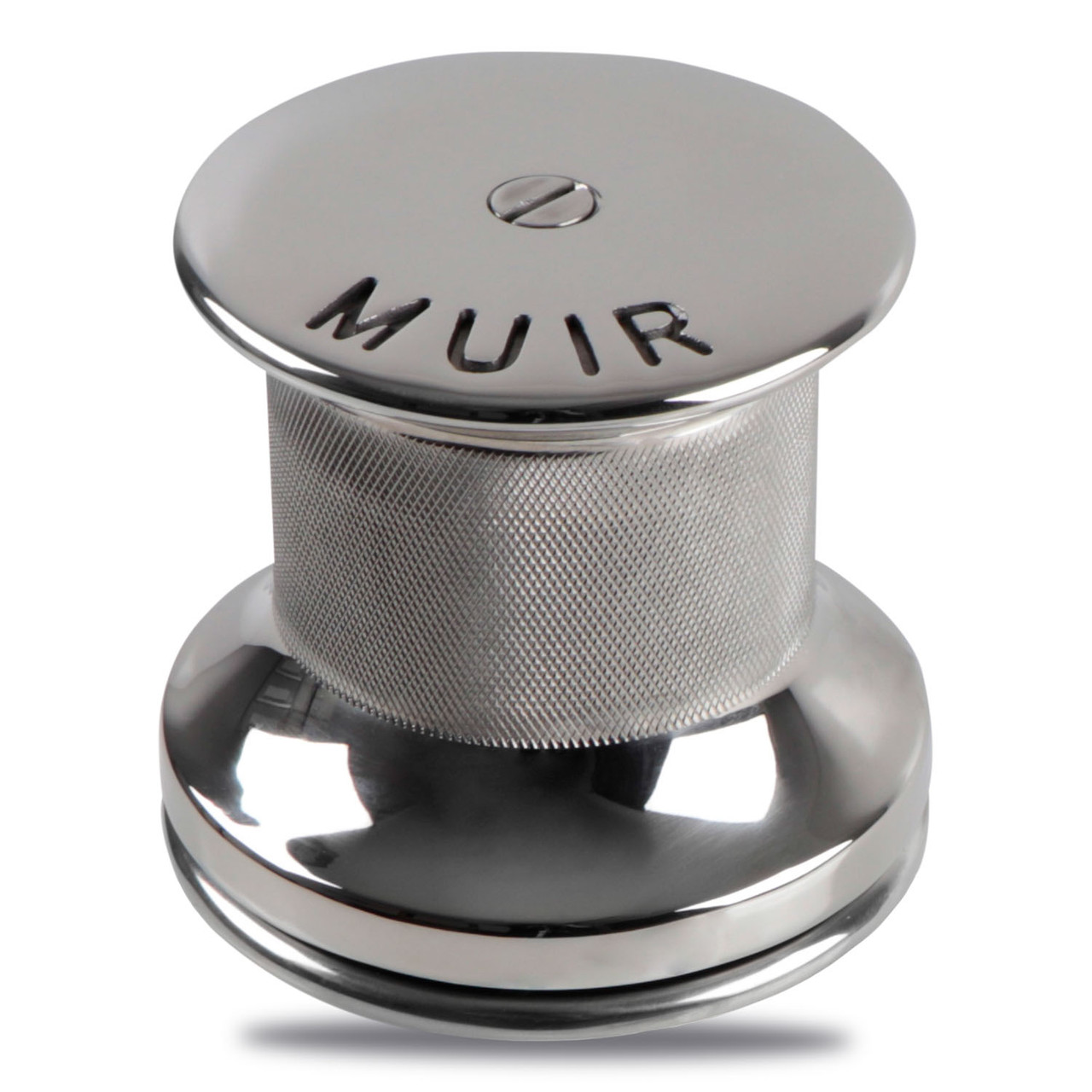

Muir VC 500 Capstan Winch - Quote Only
Hover over image to zoom
Product Description
Designed to suit vessels up to 27m (88ft) the Muir range of capstans provide reliable and heavy duty operation for mooring, warping and anchoring for all recreational and commercial applications. Efficient and quick they can be installed independently or as a complete system with windlasses. Manufactured to the highest quality standard, featuring heavy chrome and gear drive assembly. Accommodating varying deck thicknesses, they are popular for line hauling and fishing purposes. Available in 12 & 24 volt, Hydraulic & AC options.
Features
- Deck hugging snag free design
- Unit can be mounted horizontally
- Luxury chrome finish over marine grade bronze or 316 Stainless steel on some models
- Capstan features knurled finish for increased grip
- Heavy duty dual direction motor in 12 & 24V, AC & Hydraulic
- Stainless steel shaft
- Stainless steel mounting bolts
- Installation/Operation booklet
Included in the package:
Circuit Breaker & Mounting Pannel
Installation/Operation booklet
Deck Switch
| Name | Specifications |
|---|---|
| Recommended Vessel Length | 5-9m |
| Power Supply Options | DC 12V |
| Recommended Muir Circuit Breaker |
80A (12V) |
| Motor (Watts) | 550Watts |
| Amps Workload | 75A (12V) |
| Max Load | 150Kg |
| Workload | 50Kg |
| Max Line Speed | 25m/min |
| Compatible Rope Sizes |
10mm (3/8″), 12mm (1/2″) |
| Auto Anchor Compatible | No |
| Net Weight DC | 9Kg |
| Manual Operation | N/A |
| Standard Models | |||||
| Model | Description | Wattage | Voltage | Retail | Typical Price |
| MC80012I | Vertical Capstan, 600W, 12V | 600W | 12VDC | $1,100.00 | $990.00 |
| MC85012 | Vertical Capstan, 1000W, 12V | 1000W | 12VDC | $1,750.00 | $1,575.00 |
| MC250012 | Vertical Capstan, 1200W, 12V | 1200W | 12VDC | $3,000.00 | $2,700.00 |
| MC250024 | Vertical Capstan, 1200W, 24V | 1200W | 24VDC | $3,000.00 | $2,700.00 |
| MC350012 | Vertical Capstan, 1500W, 12V | 1500W | 12VDC | $3,400.00 | $3,060.00 |
| MC350024 | Vertical Capstan, 1500W, 24V | 1500W | 24VDC | $3,400.00 | $3,060.00 |
We use quotations to give our customers the best possible prices.
