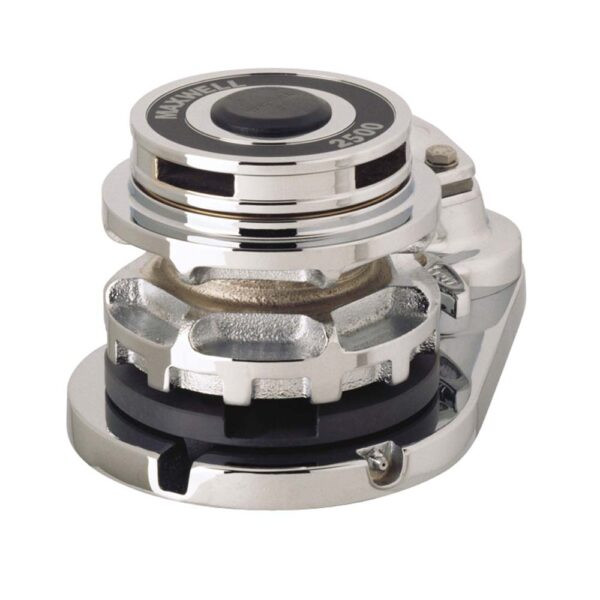

Maxwell VWC 2500 Series - Vertical Windlass - Free Quotation
Hover over image to zoom
Product Description
The VWC 2500 series is designed for automatic handling of chain-only anchor rodes while offering an independent capstan for the retrieval of a secondary rope and/or chain rode, or to assist with docking procedures.
- Permits use of traditional shackle and thimble rope and chain connection
- High-quality finish on above deck components, manufactured from marine grade stainless steel (AISI 316) and chromed bronze, for long term durability
- Cone type brake/clutch mechanism permits manual ‘Free Fall’ anchoring. Cone clutches, unlike dog clutches, provide smooth progressive engagement ensuring safe operator control
- Simplified through deck installation by modular design
- Heavy duty, dual direction Cima motor, designed for marine winches
- Easily disassembled for servicing
| Model | 2500 Series |
| Maximum Pull | 1135 kg (2500 lbs) |
| Static Hold | 2200 kg (4840 lbs) |
| Chain size | 9-11 mm (5/16” – 3/8”) |
| Line Speed (Normal Working) | 15m/min (50ft/min) |
| Power Supply (DC) | 12V, 24V, 48V |
| Motor (Watt) | 1200 W |
| Net Weight (DC) | 38 kg (84 lbs) |
| Hydraulic Pressure | 138 bar (2000 psi) |
| Hydraulic Flow | 36 l/min (9.5 US gal/min) |
| Net Weight (Hydraulic) | 32 kg (70 lbs) |
Click here to see the Owner’s Manual
