Maxwell Anchormax Capstan Winch - 12v 500w - Free Quotation
Hover over image to zoom
Product Description

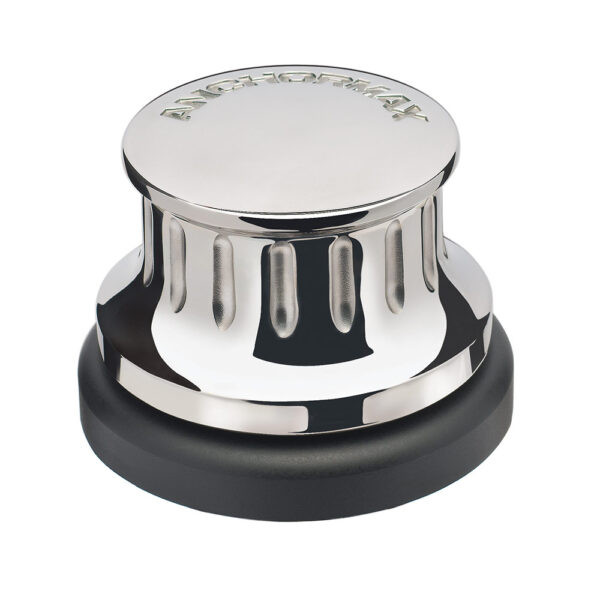

Maxwell Anchormax Capstan 12v
The ANCHORMAX is an extremely versatile vertical capstan or general purpose electric winch for use as an anchor winch, pot hauler or davit winch.
The ANCHORMAX has an extremely high power to weight ratio. The compact, fully sealed gearbox is driven by a vertically mounted, permanent magnet motor. Intrusion below decks is minimised making the design ideal for boats with minimal space requirements. Fitting to the boat is simplicity itself as no dismantling of the winch is required.
The ANCHORMAX gear housing is made of marine-grade alloy and the drum is stainless steel (AISI 316). It is supplied as a single direction (clockwise) unit, complete with deck foot switch, fastenings, template and fitting instructions.
The ANCHORMAX is not recommended for use to haul halyards.
| Model | ANCHORMAX |
| Maximum Pull/Lift | 330 kg (740 lbs) |
| Speed at normal working load - 80 amps with 75 kg (165 lb) load |
21 m/min (69 ft/min) |
| Power Supply (DC) | 12V, 24V |
| Motor Power (Watt) | 500 |
| Net Weight | 8.5 kg (18.7 lbs) |
| Maximum Boat LOA | 10 m (33 ft) |
| Maximum Boat Weight | 4 tonnes |
Click here for the Owner’s Manual
