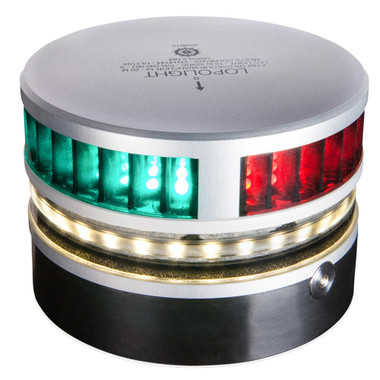

Lopolight 2NM Tricolor w/ Anchor & Strobe, K-lock PE Base - Silver Housing - Horizontal Mounting - CLEARANCE

Tri-Color Navigation Light w/Anchor Light & Strobe - 2nm f/Vessels 39'(12M) to 65'(20M) - Horizontal Mounting

Features:

• LED (Light Emitting Diode) navigation light
• Unique and precise definition of light angles
• Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED's and electronics
• Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin
• Waterproof to IP 68+ (submersible)
• Lifetime over 50,000 hours or 4,200 nights
• Low power consumption - 70 to 90% less than traditional navigation lights
• Full brightness with input voltages ranging from 10 to 32 Volts
• All Lopolights have been tested several times during production, a total of more than 24 hours
• Easy to install, adaptor and screws included (when applicable)

Specifications:

• USCG Approved
• Mounting Block Measurements: 3.64"(92.5mm)Ø x 1.14"(24mm)H
• Light Measurements: 3.64"(92.5mm)Ø x 2.51"(64mm)H
• Weight: Mounting Block - 5oz (148g) / Light - 18oz(520g)
• Materials: Anodised Aluminum 25µ, PMMA lens, A4 Stainless Steel screws, Epoxy, Polyurethane
• Supply Voltage: 10-32VDC
• Power Consumption: 1.5W - Tri-Color Mode / 1.2W - Anchor Mode
• Current @ 12VDC: 0.18A - Tri-Color / 0.14A Anchor
• Current @ 24VDC: 0.09A - Tri-Color / 0.07A - Anchor
• Intensity: >5.4cd (>20cd for the strobe)
• Visibility (@K+0.8): 2nm (4nm for the strobe)
• Number of LEDs: 104

  Included in Package:

  • (1) Navigation light, pre-cabled with 0.7M shielded marine gradecable
  • (1) Mounting Block with pre-threaded holes
  • Installation Guide
