Fireboy Manual / Automatic HFC-227ea Fire Extinguishers with Heavy-duty Bracket and Helm Display
Hover over image to zoom
Fireboy-Xintex
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Product Description
Manual / Automatic Discharge Fixed Clean Agent Fire Extinguisher - MA Series with Heavy-duty Bracket and Helm Display
Fireboy clean agent fire extinguisher systems are designed to automatically discharge whenever the protected space ambient temperature reaches 175 degrees Fahrenheit.
When the Fireboy System discharges, the extinguisher is designed to fully empty the contents in less than 10 seconds. There is no powdery residue or water left behind, so no clean up is required. The fire is extinguished by a combination of heat reduction and chemical reaction.
Each Fireboy pre-engineered fire extinguishing system includes stainless steel mounting brackets, helm station status LED panel and Owners/Installation manual. Backed by our 3-year limited warranty.
All Fireboy Extinguishers are factory refillable except when the discharge is the result of a fire.
MA2 Systems available from 25 to 1,800 cu. ft. Protected Volume.
With HFC-227ea Clean Agent. FK-5-1-12 Models Available.
FK-5-1-12 : a clear, odorless, and electrically non-conductive "clean agent" fire protection fluid used in gaseous fire suppression systems
key Benefits:
- Protects engine rooms and machinery spaces up to 1,800 cubic feet (with FK-5-1-12)
- Pre-engineered, total flooding system.
- The safest way to combat an engine room fire.
- Automatic discharge at 175°F (79°C) with optional manual release.
- HFC-227ea – effective Halon replacement clean agent
- FK-5-1-12 clean extinguishing agent
- No water or powdery residue
- Includes locking lever for increased safety when removing or installing cable
- Includes powder coated mounting bracket and 2 in. L.E.D. helm display
- 3-Year Limited Warranty
MA2 Series extinguisher listings and approvals:
- USCG
- ISO RINA
- MCA Certified
- PED BV Final
- Bureau Veritas
- Factory Mutual
- All systems meet EN ISO 9094-1 and EN ISO 9094-2 standards.
Selecting Your System
- Determine the volume of your engine compartment in cubic feet or cubic meters, L x W x H. Do NOT deduct for engines, fixed tanks, or other equipment.
- Choose your model from the HFC-227ea or FK-5-1-12 size chart.
Example: MA0950227 = automatic discharge with optional manual discharge, 950 cubic feet coverage.
NOTE: When in doubt, always select the larger model size for adequate protection.
- Determine the length of Manual Release Cable needed to easily reach from the fire extinguisher to the main helm station.
WARNING: Craft with equipment that draws intake air from within a protected space require installation of an Engine Shutdown System
Links to Fireboy:
Fireboy clean agent fire extinguisher systems are designed to automatically discharge whenever the protected space ambient temperature reaches 175 degrees Fahrenheit.
When the Fireboy System discharges, the extinguisher is designed to fully empty the contents in less than 10 seconds. There is no powdery residue or water left behind, so no clean up is required. The fire is extinguished by a combination of heat reduction and chemical reaction.
Each Fireboy pre-engineered fire extinguishing system includes stainless steel mounting brackets, helm station status LED panel and Owners/Installation manual. Backed by our 3-year limited warranty.
All Fireboy Extinguishers are factory refillable except when the discharge is the result of a fire.

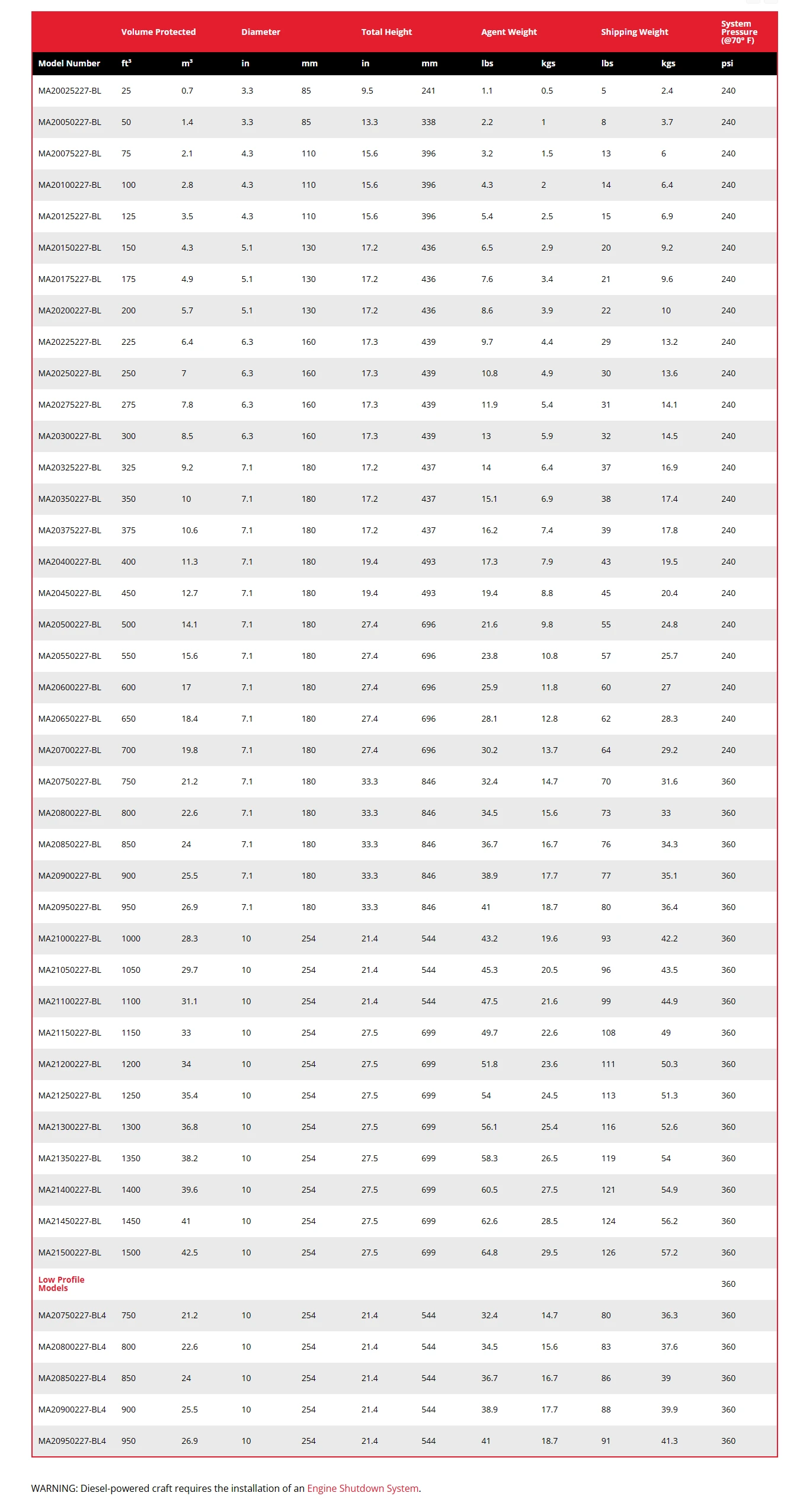

Sizing and Information:CG2 and MA2 Series HFC-227ea Product Brochure
Calculating room volume:MA2/CG2 HFC-227ea Volume Calculation Worksheet
Manual:MA2 and CG2 HFC-227ea Owner’s Manual - REV L
