Caribe DL-17

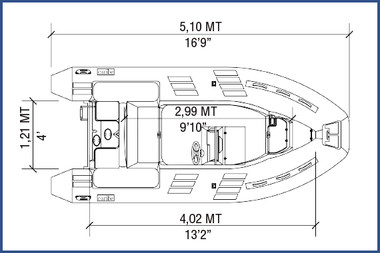

TECHNICAL SPECS:

O.A. LENGTH: 5,10 mt / 16’9″
O.A. BEAM: 2,48 mt / 8’2″
INSIDE LENGTH: 3,99 mt / 13’1″
INSIDE BEAM: 1,28 mt / 4’3″
AIR CHAMBERS: 4
TUBES Ø: 0,61 mt/ 24″
WEIGHT: 420 kg / 926 lb
MAX PERSON: 10
MAX LOAD: 1385 kg / 3053 lb
MAX HP/KW: 150 HP / 112 KW
ENGINE SHAFT: LONG / 20″
LIFTING POINTS: 4

Also Includes:

SEAT/CONSOLE
FUEL TANK
WATER TANK/SHOWER
REAR SEAT/BACK REST
ICE BOX
LADDER
BILGE PUMP
NAV. LIGHT
BOW STORAGE

Owners Manual
