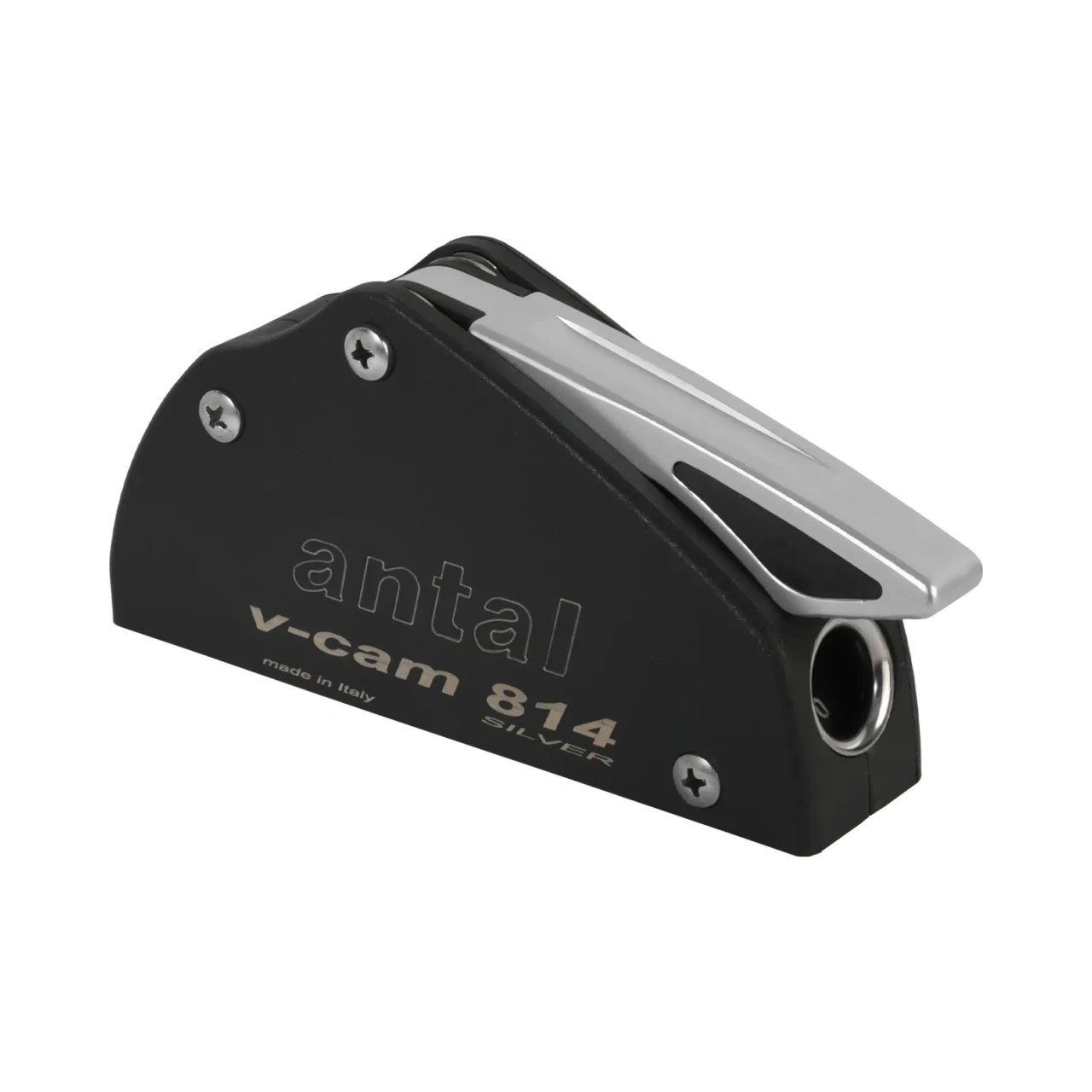

Antal Silver V-Cam 814 single clutch for Ø12-14mm lines
Hover over image to zoom
Antal
$0.00
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
Add To Cart And Checkout To Receive A Quote
Prices on this website do not reflect the actual sales price. Submit your order to receive a quote with our competitive discounted pricing.
SKU:
549.113
)
Product Description
V-Cam 814 with silver anodized aluminium lever, single clutch, for lines Ø12-14.
V-Cam 814 has a box-structure in UV-resistant resin with S.Steel reinforcements, aluminium base, V-Cam and aligning bushing in AISI316.
It can be completely dismantled for simple maintenance and repairing.
Retrieval can be performed with the stopper closed; the operation automatically secures itself in the new position.
Technical Characteristics:
| Model : | 549.113 |
| Ø Line Diameter | 12-14mm |
| Length (L) | 154,5mm |
| Width (W) | 36 mm |
|
Height (H)
|
78 mm |
|
Weight
|
0,6 kg |
| MWL | 1500 |
| Fixing Screws | 2 x Ø8 mm |
