AIR 30 48V Gray Cast Aluminum Body - No Paint - Designed With Built-in Regulator
Hover over image to zoom
Product Description
AIR 30 48V Gray Cast Aluminum Body - No Paint - Designed With Built-in Regulator

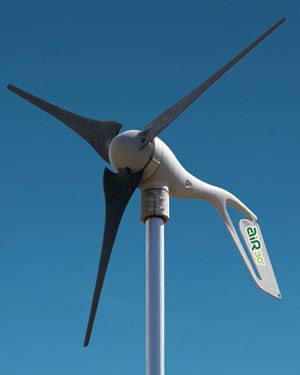

AIR® 30 Turbine
Optimum Energy In High Wind Environments
When you need energy, our AIR 30 delivers. It’s hands down the best energy choice for off-grid land-based applications in high wind environments. Use it for SCADA, telecom, security, cathodic protection — you name it. With optimized software, AIR 30 consistently delivers energy where it matters. The AIR 30’s heavy-duty design can withstand most high wind environments. The AIR 30 is an ideal turbine for hybrid combinations with solar PV. Not for use in marine environments. AIR 30 is built and backed by the worldwide leader in small wind.
The AIR 30 builds upon what has made AIR the world’s #1 selling small wind turbine. The new technology used in the AIR 30 was only previously found in mega-watt-class wind turbines.
The AIR 30 uses a new microprocessor based technology that results in an increase in performance, battery charging capability, and reliability.
- High-quality, third-party tested components for reliability and safety
- Pair with solar PV for redundant energy production year-round
- Advanced microprocessor technology for superior performance and high wind protection without mechanical braking
- Lightweight design is simple and easy-to-install; integrated power electronics for plug-and-play operation
- CE Declaration of Comformity (for battery charging applications only)
- Restrictive of Hazardous Substances (RoHS) Compliance
- Produces 30 kWh of energy a month* for land-based, high wind applications
- Canadian Standards Association (CSA) International Certificate of Compliance
Data Sheet
| Value | Specification |
|---|---|
| Energy | Approx. 30 kWh/mo at 5.5 m/s (12 mph) |
| Swept Area | 1.07 m2 (11.5 ft2) |
| Rotor Diameter | 1.17 m (46 in) |
| Weight | 5.9 kg (13 lb) |
| Shipping Dimensions | 686 x 318 x 229 mm (27 x 12.5 x 9 in) 7.7 kg (17 lb) |
| Startup Wind Speed | 3.59 m/s (8 mph) |
| Voltage | 12, 24, and 48 VDC |
| Turbine Controller | Microprocessor-based smart controller |
| Body | Permanent mold cast aluminum |
| Blades | (3) Injection-molded composite |
| Alternator | Permanent magnet brushless |
| Overspeed Protection | Electronic torque control |
| Survival Wind Speed | 40.2 m/s (90 mph) |
| Mount | 1.5 in schedule 40 pipe 48 mm (1.9 in) outer diameter |
