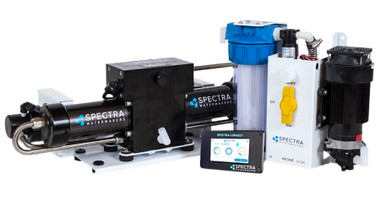

Spectra VT-150C

The Ventura 150C operates globally, delivering over 6 gallons (24 liters) of fresh drinking water per hour. The Ventura series is designed for smaller vessels, offering energy efficiency and lightweight construction. These watermakers consist of compact modules, ensuring easy installation in confined spaces.It features the new Spectra Connect, enabling remote operation and monitoring. Spectra Connect includes advanced features like Fill Tank mode, customizable Auto Run mode, One-Touch Sensor Calibration, and maintenance interval suggestions displayed on the dashboard. Enhance your system with the Z±ION Membrane Protection System to extend the service life of membranes and filters without using aggressive chemicals.

Quick Facts:

• Designed to operate efficiently from the Arctic to the Equator
• Control your Spectra Watermaker directly from your Multifunction Display (MFD)
• Available for most Garmin, Raymarine and Navico/Simrad helm stations
• Completely automated with the Spectra Connect Controller
• Compact modular design
• Spectra’s unique Clark Pump ensures efficiency and reliability
• Low power consumption—can be run on batteries, solar, or wind power
• Whisper quiet
• Commercial grade diaphragm pump with run dry protection
• Z±ION compatible
• Remote display

Ventura 150C-200C-T Electrical Specifications

Ventura 150C 12V:

• • Power Supply Voltage: 12 VDC
  • Bench Test: 14 V / 9.4 A
  • Power Consumption: 132 W
  • Efficiency: 20.5 Wh/gal

Ventura 150C 24V:

• • Power Supply Voltage: 24 VDC
  • Bench Test: 27.2 V / 4.3 A
  • Power Consumption: 117 W
  • Efficiency: 17.5 Wh/gal

Ventura 150/200T Installation and Operating Manual

Ventura 150C Watermaker Product Specifications
